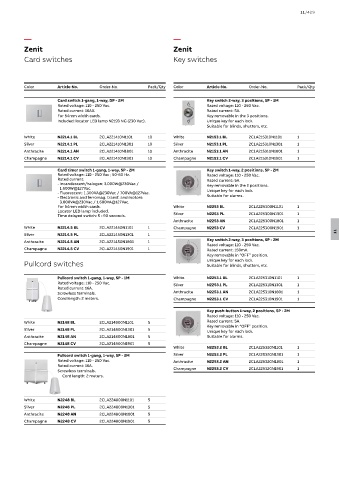

Page 1535 - Din prodcuts 2020

11/429

— —
Zenit Zenit
Card switches Key switches

Color Article-No. Order-No. Pack/Qty Color Article-No. Order-No. Pack/Qty

Card switch 1-gang, 1-way, DP - 2M Key switch 2-way, 3 positions, SP - 1M
Rated voltage: 110 - 250 Vac. Rated voltage: 110 - 250 Vac.
Rated current: 16AX. Rated current: 5A.
For 54mm width cards. Key removable in the 3 positions.
Included: locator LED lamp N2193 NG (230 Vac). Unique key for each lock.
Suitable for blinds, shutters, etc.

White N2214.1 BL 2CLA221410N1101 10 White N2153.1 BL 2CLA215310N1101 1
Silver N2214.1 PL 2CLA221410N1301 10 Silver N2153.1 PL 2CLA215310N1301 1
Anthracite N2214.1 AN 2CLA221410N1801 10 Anthracite N2153.1 AN 2CLA215310N1801 1
Champagne N2214.1 CV 2CLA221410N1901 10 Champagne N2153.1 CV 2CLA215310N1901 1

Card timer switch 1-gang, 1-way, SP - 2M Key switch 1-way, 2 positions, SP - 2M
Rated voltage: 110 - 250 Vac ; 50-60 Hz. Rated voltage: 110 - 250 Vac.
Rated current: Rated current: 5A.
- Incandescent/halogen: 3.000W@230Vac / Key removable in the 2 positions.
1.600W@127Vac. Unique key for each lock.
- Fluorescent: 1.300VA@230Vac / 700VA@127Vac.
- Electronic and ferromag. transf. and motors: Suitable for alarms.
3.000VA@230Vac / 1.600VA@127Vac.
For 54mm width cards. White N2253 BL 2CLA225300N1101 1
Locator LED lamp included. Silver N2253 PL 2CLA225300N1301 1
Time delayed switch: 5 - 90 seconds.
Anthracite N2253 AN 2CLA225300N1801 1
White N2214.5 BL 2CLA221450N1101 1 Champagne N2253 CV 2CLA225300N1901 1
Silver N2214.5 PL 2CLA221450N1301 1 11
Anthracite N2214.5 AN 2CLA221450N1801 1 Key switch 2-way, 3 positions, SP - 2M
Rated voltage: 110 - 250 Vac.
Champagne N2214.5 CV 2CLA221450N1901 1 Rated current: 150mA.
Key removable in “OFF” position.
Pullcord switches Unique key for each lock.
Suitable for blinds, shutters, etc.
Pullcord switch 1-gang, 1-way, SP - 1M White N2253.1 BL 2CLA225310N1101 1
Rated voltage: 110 - 250 Vac. Silver N2253.1 PL 2CLA225310N1301 1
Rated current: 16A.
Screwless terminals. Anthracite N2253.1 AN 2CLA225310N1801 1
Cord length: 2 meters. Champagne N2253.1 CV 2CLA225310N1901 1

Key push-button 1-way, 2 positions, SP - 2M
Rated voltage: 110 - 250 Vac.
White N2148 BL 2CLA214800N1101 5 Rated current: 5A.
Key removable in “OFF” position.
Silver N2148 PL 2CLA214800N1301 5 Unique key for each lock.
Anthracite N2148 AN 2CLA214800N1801 5 Suitable for alarms.
Champagne N2148 CV 2CLA214800N1901 5
White N2253.2 BL 2CLA225320N1101 1
Pullcord switch 1-gang, 1-way, SP - 2M Silver N2253.2 PL 2CLA225320N1301 1
Rated voltage: 110 - 250 Vac. Anthracite N2253.2 AN 2CLA225320N1801 1
Rated current: 16A.
Screwless terminals. Champagne N2253.2 CV 2CLA225320N1901 1
Cord length: 2 meters.

White N2248 BL 2CLA224800N1101 5
Silver N2248 PL 2CLA224800N1301 5
Anthracite N2248 AN 2CLA224800N1801 5
Champagne N2248 CV 2CLA224800N1901 5
