11/462 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—

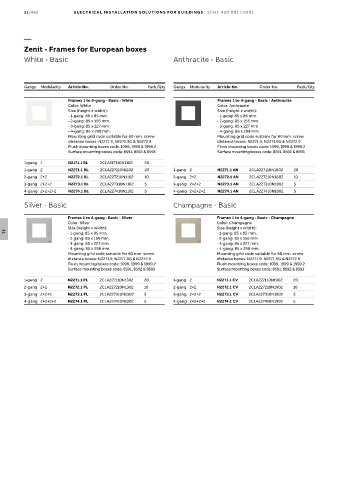

Zenit - Frames for European boxes
White - Basic Anthracite - Basic

Gangs Modularity Article-No. Order-No. Pack/Qty Gangs Modularity Article-No. Order-No. Pack/Qty

Frames 1 to 4-gang - Basic - White Frames 1 to 4-gang - Basic - Anthracite
Color: White Color: Anthracite
Size (height x width): Size (height x width):
- 1-gang: 85 x 85 mm. - 1-gang: 85 x 85 mm.
- 2-gang: 85 x 156 mm. - 2-gang: 85 x 156 mm.
- 3-gang: 85 x 227 mm. - 3-gang: 85 x 227 mm.
- 4-gang: 85 x 298 mm. - 4-gang: 85 x 298 mm.
Mounting grid code suitable for 60 mm. screw Mounting grid code suitable for 60 mm. screw
distance boxes: N2271.9, N2271.9G & N2272.9 distance boxes: N2271.9, N2271.9G & N2272.9
Flush mounting boxes code: 1099, 1999 & 1999.2 Flush mounting boxes code: 1099, 1999 & 1999.2
Surface mounting boxes code: 8591, 8592 & 8593 Surface mounting boxes code: 8591, 8592 & 8593
1-gang 1 N2171.1 BL 2CLA217110N1102 20
1-gang 2 N2271.1 BL 2CLA227110N1102 20 1-gang 2 N2271.1 AN 2CLA227110N1802 20
2-gang 2+2 N2272.1 BL 2CLA227210N1102 10 2-gang 2+2 N2272.1 AN 2CLA227210N1802 10
3-gang 2+2+2 N2273.1 BL 2CLA227310N1102 5 3-gang 2+2+2 N2273.1 AN 2CLA227310N1802 5
4-gang 2+2+2+2 N2274.1 BL 2CLA227410N1102 5 4-gang 2+2+2+2 N2274.1 AN 2CLA227410N1802 5

Silver - Basic Champagne - Basic

Frames 1 to 4-gang - Basic - Silver Frames 1 to 4-gang - Basic - Champagne
Color: Silver Color: Champagne
Size (height x width): Size (height x width):
- 1-gang: 85 x 85 mm. - 1-gang: 85 x 85 mm.
11
- 2-gang: 85 x 156 mm. - 2-gang: 85 x 156 mm.
- 3-gang: 85 x 227 mm. - 3-gang: 85 x 227 mm.
- 4-gang: 85 x 298 mm. - 4-gang: 85 x 298 mm.
Mounting grid code suitable for 60 mm. screw Mounting grid code suitable for 60 mm. screw
distance boxes: N2271.9, N2271.9G & N2272.9 distance boxes: N2271.9, N2271.9G & N2272.9
Flush mounting boxes code: 1099, 1999 & 1999.2 Flush mounting boxes code: 1099, 1999 & 1999.2
Surface mounting boxes code: 8591, 8592 & 8593 Surface mounting boxes code: 8591, 8592 & 8593

1-gang 2 N2271.1 PL 2CLA227110N1302 20 1-gang 2 N2271.1 CV 2CLA227110N1902 20
2-gang 2+2 N2272.1 PL 2CLA227210N1302 10 2-gang 2+2 N2272.1 CV 2CLA227210N1902 10
3-gang 2+2+2 N2273.1 PL 2CLA227310N1302 5 3-gang 2+2+2 N2273.1 CV 2CLA227310N1902 5
4-gang 2+2+2+2 N2274.1 PL 2CLA227410N1302 5 4-gang 2+2+2+2 N2274.1 CV 2CLA227410N1902 5
