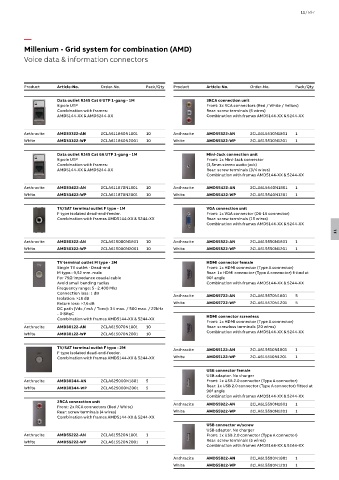

Millenium - Grid system for combination (AMD)
Voice data & information connectors

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Data outlet RJ45 Cat 6 UTP 1-gang - 1M 3RCA connection unit
8 pole UTP Front: 3x RCA connectors (Red / White / Yellow)
Combination with frames: Rear: screw terminals (6 wires)
AMD5144-XX & AMD5244-XX Combination with frames AMD5144-XX & 5244-XX

Anthracite AMD33322-AN 2CLA611860N1801 10 Anthracite AMD55322-AN 2CLA615530N1801 1
White AMD33322-WP 2CLA611860N2001 10 White AMD55322-WP 2CLA615530N1201 1

Data outlet RJ45 Cat 6A UTP 1-gang - 1M Mini-Jack connection unit
8 pole UTP Front: 1x Mini-Jack connector
Combination with frames: (3,5mm stereo audio jack)
AMD5144-XX & AMD5244-XX Rear: screw terminals (3/4 wires)
Combination with frames AMD5144-XX & 5244-XX

Anthracite AMD33422-AN 2CLA611870N1801 10 Anthracite AMD55422-AN 2CLA615540N1801 1
White AMD33422-WP 2CLA611870N2001 10 White AMD55422-WP 2CLA615540N1201 1

TV/SAT terminal outlet F type - 1M VGA connection unit
F type isolated dead-end-feeder. Front: 1x VGA connector (DE-15 connector)
Combination with frames AMD5144-XX & 5244-XX Rear: screw terminals (15 wires)
Combination with frames AMD5144-XX & 5244-XX
11
Anthracite AMD30322-AN 2CLA615000N1801 10 Anthracite AMD55522-AN 2CLA615550N1801 1
White AMD30322-WP 2CLA615000N2001 10 White AMD55522-WP 2CLA615550N1201 1

TV terminal outlet M type - 1M HDMI connector female
Single TV outlet - Dead-end Front: 1x HDMI connector (Type A connector)
M type - 9,52 mm. male Rear: 1x HDMI connector (Type A connector) fitted at
For 75Ω impedance coaxial cable 90º angle
Avoid small bending radius Combination with frames AMD5144-XX & 5244-XX
Frequency range: 5 - 2.400 Mhz
Connection loss: 1 dB Anthracite AMD55722-AN 2CLA615570N1801 5
Isolation: >16 dB
Return loss: >7,6 dB White AMD55722-WP 2CLA615570N1201 5
DC path (Vdc / mA / Tono): 34 max. / 500 max. / 22kHz
- DiSEqC HDMI connector screwless
Combination with frames AMD5144-XX & 5244-XX
Front: 1x HDMI connector (Type A connector)
Anthracite AMD30122-AN 2CLA615070N1801 10 Rear: screwless terminals (20 wires)
White AMD30122-WP 2CLA615070N2001 10 Combination with frames AMD5144-XX & 5244-XX

TV/SAT terminal outlet F type - 2M Anthracite AMD55122-AN 2CLA615510N1801 1
F type isolated dead-end-feeder.
Combination with frames AMD5144-XX & 5244-XX White AMD55122-WP 2CLA615510N1201 1

USB connector female
USB adaptor. No charger
Anthracite AMD30344-AN 2CLA625000N1801 5 Front: 1x USB 2.0 connector (Type A connector)
Rear: 1x USB 2.0 connector (Type A connector) fitted at
White AMD30344-WP 2CLA625000N2001 5
90º angle
Combination with frames AMD5144-XX & 5244-XX
2RCA connection unit Anthracite AMD55922-AN 2CLA615590N1801 1
Front: 2x RCA connectors (Red / White)
Rear: screw terminals (4 wires) White AMD55922-WP 2CLA615590N1201 1
Combination with frames AMD5144-XX & 5244-XX
USB connector w/screw
USB adaptor. No charger
Anthracite AMD55222-AN 2CLA615520N1801 1 Front: 1x USB 2.0 connector (Type A connector)
White AMD55222-WP 2CLA615520N2001 1 Rear: screw terminals (5 wires)
Combination with frames AMD5144-XX & 5244-XX

Anthracite AMD55822-AN 2CLA615580N1801 1
White AMD55822-WP 2CLA615580N1201 1
