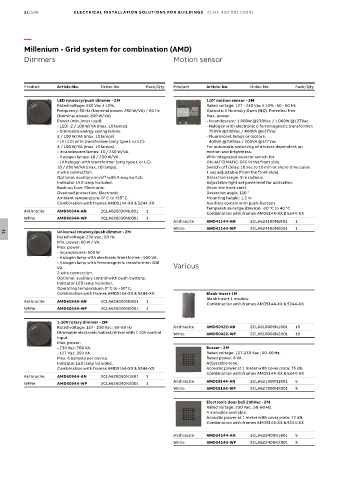

11/598 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Millenium - Grid system for combination (AMD)
Dimmers Motion sensor

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

LED rotatory/push dimmer - 2M 110° motion sensor - 2M
Rated voltage: 230 Vac ± 10%. Rated voltage: 127 - 230 Vac ± 10% ; 50 - 60 Hz
Frequency: 50 Hz (Nominal power: 250 W/VA) / 60 Hz Outputs: 1 Normally Open (NO). Potential free
(Nominal power: 200 W/VA). Max. power:
Power (min./max load): - Incandescent: 1.800W @230Vac / 1.000W @127Vac
- LEDi: 2 / 100 W/VA (max. 10 lamps). - Halogen with electronic o ferromagnetic transformer:
- Dimmable energy saving lamps: 750VA @230Vac / 400VA @127Vac
2 / 100 W/VA (max. 10 lamps). - Fluorescent lamps or motors:
- LV LEDi with transformer (only type L or LC): 400VA @230Vac / 200VA @127Vac
4 / 100 W/VA (max. 10 lamps). For automatic switching of devices dependent on
- Incandescent lamps: 10 / 250 W/VA. motion and brightness.
- Halogen lamps: 10 / 250 W/VA. With integrated selector switch for
- LV halogen with transformer (only type L or LC): ON-AUTOMATIC-OFF in the front side.
10 / 250 W/VA (max. 10 lamps). Switch-off delay: 10 sec to 10 min or short-time pulse
2 wire connection. 1 sec adjustable (from the front side).
Optional: auxiliary on/off with 2-way switch. Detection range: 5 m radious.
Indicator LED lamp included. Adjustable light set point level for activation
Back-up fuse: Electronic. (from the front side).
Overload protection: Electronic. Detection angle: 110 °
Ambient temperature: 0° C to +35° C. Mounting height: 1,2 m
Combination with frames AMD5144-XX & 5244-XX Auxiliary control with push-buttons
Temperature range (Device): -10 °C to 40 °C
Anthracite AMD60344-AN 2CLA626030N1801 1
Combination with frames AMD5144-XX & 5244-XX
White AMD60344-WP 2CLA626030N2001 1
Anthracite AMD41144-AN 2CLA624100N1801 1
White AMD41144-WP 2CLA624100N2001 1
Universal rotatory/push dimmer - 2M
11
Rated voltage: 230 Vac ; 50 Hz.
Min. power: 60 W / VA.
Max. power:
- Incandescent: 500 W.
- Halogen lamp with electronic transformer: 500 VA.
- Halogen lamp with ferromagnetic transformer: 400
VA. Various
2 wire connection.
Optional: auxiliary control with push-buttons.
Indicator LED lamp included.
Operating temperature: 0° C to +30° C.
Combination with frames AMD5144-XX & 5244-XX Blank insert 1M
Blank insert 1 module
Anthracite AMD60244-AN 2CLA626020N1801 1
Combination with frames AMD5144-XX & 5244-XX
White AMD60244-WP 2CLA626020N2001 1
1-10V rotary dimmer - 2M
Rated voltage: 127 - 230 Vac ; 50-60 Hz Anthracite AMD50422-AN 2CLA610000N1801 10
Dimmable electronic ballast/driver with 1-10V control White AMD50422-WP 2CLA610000N2001 10
input.
Max. power:
- 230 Vac: 700 VA. Buzzer - 2M
- 127 Vac: 350 VA. Rated voltage: 127-230 Vac ; 50-60 Hz.
Max. 6 ballasts per device. Rated power: 8 VA.
Indicator LED lamp included. Adjustable tone.
Combination with frames AMD5144-XX & 5244-XX Acoustic power at 1 meter with cover plate: 75 dB.
Combination with frames AMD5144-XX & 5244-XX
Anthracite AMD60944-AN 2CLA626090N1801 1
Anthracite AMD19144-AN 2CLA621900N1801 5
White AMD60944-WP 2CLA626090N2001 1
White AMD19144-WP 2CLA621900N2001 5

Electronic door bell 230Vac - 2M
Rated voltage: 230 Vac ; 50-60 Hz.
4 melodies available.
Acoustic power at 1 meter with cover plate: 72 dB.
Combination with frames AMD5144-XX & 5244-XX

Anthracite AMD24144-AN 2CLA622400N1801 5
White AMD24144-WP 2CLA622400N2001 5
