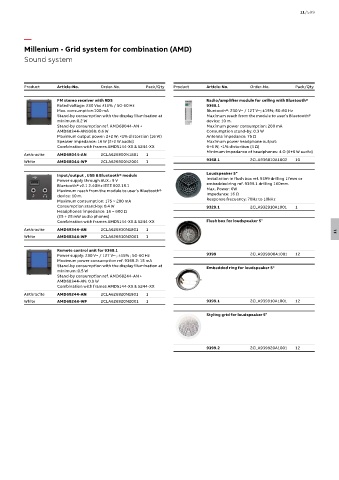

Millenium - Grid system for combination (AMD)
Sound system

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

FM stereo receiver with RDS Radio/amplifier module for ceiling with Bluetooth®
Rated voltage: 230 Vac ±15% / 50-60 Hz 9368.1
Max. consumption:100 mA Bluetooth®: 230 V~ / 127 V~; ±15%; 50-60 Hz
Stand-by consumption with the display illumination at Maximum reach from the module to user’s Bluetooth®
minimum:0.2 W device: 10 m.
Stand-by consumption ref. AMD68044-AN + Maximum power consumption: 200 mA
AMD68344-AN9368: 0.6 W Consumption stand-by: 0.3 W
Maximum output power: 2+2 W; <1% distorsion (16 W) Antenna impedance: 75 Ω
Speaker Impedance: 16 W (2+2 W audio) Maximum power headphone output:
Combination with frames AMD5144-XX & 5244-XX 6+6 W; <1% distortion (4 Ω)
Minimum impedance of headphones: 4 Ω (6+6 W audio)
Anthracite AMD68044-AN 2CLA626800N1801 1
White AMD68044-WP 2CLA626800N2001 1 9368.1 2CLA936810A1002 10

Input/output , USB & Bluetooth® module Loudspeaker 5"
Power supply through AUX.: 9 V Installation in flush box ref. 9399 drilling 17mm or
Bluetooth® v2.1 2.4GHz IEEE 802.15.1 embedded ring ref. 9399.1 drilling 160mm.
Maximum reach from the module to user’s Bluetooth® Max. Power: 6W
device: 10 m. Impedance: 16 Ω
Maximum consumption: 175 ~ 200 mA Response frecuency: 70Hz to 10kHz
Consumption stand-by: 0.4 W 9329.1 2CLA932910A1001 1
Headphones impedance: 16 ~ 600 Ω
(25 + 25 mW audio phones)
Combination with frames AMD5144-XX & 5244-XX Flush box for loudspeaker 5"
Anthracite AMD68344-AN 2CLA626830N1801 1 11
White AMD68344-WP 2CLA626830N2001 1

Remote control unit for 9368.1
Power supply: 230 V~ / 127 V~ ; ±15% ; 50-60 Hz 9399 2CLA939900A1001 12
Maximum power consumption ref. 9368.2: 15 mA
Stand-by consumption with the display illumination at Embedded ring for loudspeaker 5"
minimum :0.5 W
Stand-by consumption ref. AMD68244-AN +
AMD68344-AN: 0.9 W
Combination with frames AMD5144-XX & 5244-XX
Anthracite AMD68244-AN 2CLA626820N1801 1
White AMD68244-WP 2CLA626820N2001 1 9399.1 2CLA939910A1001 12
Styling grid for loudspeaker 5"

9399.2 2CLA939920A1001 12
