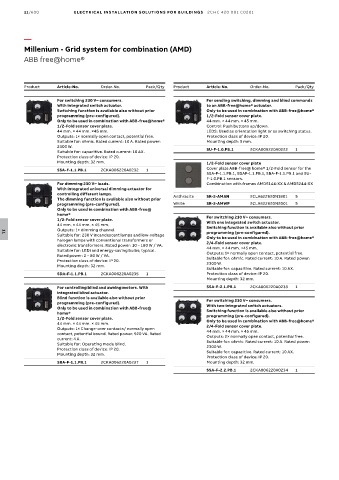

11/600 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201
—
Millenium - Grid system for combination (AMD)
ABB free@home®
Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty
For switching 230 V~ consumers. For sending switching, dimming and blind commands
With integrated switch actuator. to an ABB-free@home® actuator.
Switching function is available also without prior Only to be used in combination with ABB-free@home®
programming (pre-configured). 1/2-Fold sensor cover plate.
Only to be used in combination with ABB-free@home® 44 mm. × 44 mm. × 45 mm.
1/2-Fold sensor cover plate. Control: Push buttons up/down.
44 mm. × 44 mm. ×45 mm. LEDS: Used as orientation light or as switching status.
Outputs: 1× normally open contact, potential free. Protection class of device: IP 20.
Suitable for: ohmic. Rated current: 10 A. Rated power: Mounting depth: 9 mm.
2300 W.
Suitable for: capacitive. Rated current: 10 AX. SU-F-1.0.PB.1 2CKA006220A0222 1
Protection class of device: IP 20.
Mounting depth: 32 mm. 1/2-Fold sensor cover plate
SSA-F-1.1.PB.1 2CKA006220A0232 1 Cover plate ABB-free@ home® 1/2-Fold sensor for the
SSA-F-1.1.PB.1, SDAF-1.1.PB.1, SBA-F-1.1.PB.1 and SU-
F-1.0.PB.1 sensors.
For dimming 230 V~ loads. Combination with frames AMD5144-XX & AMD5244-XX
With integrated universal dimming actuator for
controlling different lamps.
The dimming function is available also without prior Anthracite SR-2-AMAN 2CLA622620N1801 5
programming (pre-configured). White SR-2-AMWP 2CLA622620N2001 5
Only to be used in combination with ABB-free@
home®
1/2-Fold sensor cover plate. For switching 230 V~ consumers.
44 mm. × 44 mm. × 45 mm. With one integrated switch actuator.
Switching function is available also without prior
Outputs: 1× dimming channel. programming (pre-configured).
Suitable for: 230 V incandescent lamps and low-voltage Only to be used in combination with ABB-free@home®
11
halogen lamps with conventional transformers or 2/4-Fold sensor cover plate.
electronic transformers. Rated power: 10 – 180 W / VA. 44 mm. × 44 mm. ×45 mm.
Suitable for: LEDi and energy-saving bulbs; typical. Outputs: 1× normally open contact, potential free.
Rated power: 2 – 80 W / VA. Suitable for: ohmic. Rated current: 10 A. Rated power:
Protection class of device: IP 20. 2300 W.
Mounting depth: 32 mm.
Suitable for: capacitive. Rated current: 10 AX.
SDA-F-1.1.PB.1 2CKA006220A0235 1 Protection class of device: IP 20.
Mounting depth: 32 mm.
For controlling blind and awning motors. With SSA-F-2.1.PB.1 2CKA006220A0233 1
integrated blind actuator.
Blind function is available also without prior For switching 230 V~ consumers.
programming (pre-configured). With two integrated switch actuators.
Only to be used in combination with ABB-free@ Switching function is available also without prior
home® programming (pre-configured).
1/2-Fold sensor cover plate. Only to be used in combination with ABB-free@home®
44 mm. × 44 mm. × 45 mm. 2/4-Fold sensor cover plate.
Outputs: 1× Change-over contacts/ normally open 44 mm. × 44 mm. × 45 mm.
contact, potential bound. Rated power: 920 VA. Rated Outputs: 2× normally open contact, potential free.
current: 4 A. Suitable for: ohmic. Rated current: 10 A. Rated power:
Suitable for: Operating mode blind. 2300 W.
Protection class of device: IP 20. Suitable for: capacitive. Rated current: 10 AX.
Mounting depth: 32 mm.
Protection class of device: IP 20.
SBA-F-1.1.PB.1 2CKA006220A0237 1 Mounting depth: 32 mm.
SSA-F-2.2.PB.1 2CKA006220A0234 1
