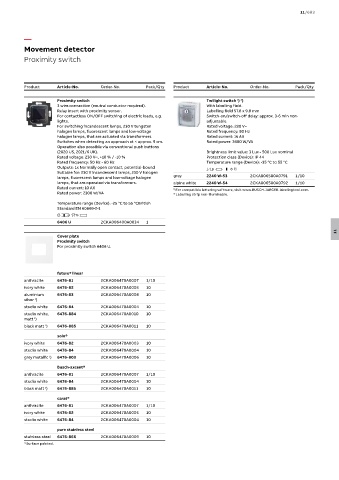

Movement detector
Proximity switch

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Proximity switch Twilight switch ) )
1
2
3 wire connection (neutral conductor required). With labelling field.
Relay insert with proximity sensor. Labelling field 57.8 x 9.8 mm
For contactless ON/OFF switching of electric loads, e.g. Switch-on/switch-off delay: approx. 3-6 min non-
lights. adjustable.
For switching incandescent lamps, 230 V tungsten Rated voltage: 230 V~
halogen lamps, fluorescent lamps and low-voltage Rated frequency: 50 Hz
halogen lamps, that are actuated via transformers. Rated current: 16 AX
Switches when detecting an approach at < approx. 5 cm. Rated power: 3680 W/VA
Operation also possible via conventional push buttons
(2020 US, 2021/6 UK). Brightness limit value: 3 Lux - 500 Lux nominal
Rated voltage: 230 V~, +10 % / -10 % Protection class (Device): IP 44
Rated frequency: 50 Hz - 60 Hz Temperature range (Device): -35 °C to 55 °C
Outputs: 1x Normally open contact, potential-bound
Suitable for: 230 V incandescent lamps, 230 V halogen
lamps, fluorescent lamps and low-voltage halogen grey 2240 W-53 2CKA006500A0791 1/10
lamps, that are operated via transformers. alpine white 2240 W-54 2CKA006500A0792 1/10
Rated current: 10 AX 1) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
Rated power: 2300 W/VA 2) Labelling strip non-illuminable.
Temperature range (Device): -25 °C to 55 °CBritish
Standard EN 60669-2-1

6406 U 2CKA006400A0034 1
11
Cover plate
Proximity switch
For proximity switch 6406 U.

future® linear
anthracite 6476-81 2CKA006470A0007 1/10
ivory white 6476-82 2CKA006470A0003 10
aluminium 6476-83 2CKA006470A0008 10
silver )
1
studio white 6476-84 2CKA006470A0004 10
studio white, 6476-884 2CKA006470A0010 10
matt )
1
black matt ) 6476-885 2CKA006470A0011 10
1
solo®
ivory white 6476-82 2CKA006470A0003 10
studio white 6476-84 2CKA006470A0004 10
grey metallic ) 6476-803 2CKA006470A0006 10
1
Busch-axcent®
anthracite 6476-81 2CKA006470A0007 1/10
studio white 6476-84 2CKA006470A0004 10
1
black matt ) 6476-885 2CKA006470A0011 10
carat®
anthracite 6476-81 2CKA006470A0007 1/10
ivory white 6476-82 2CKA006470A0003 10
studio white 6476-84 2CKA006470A0004 10
pure stainless steel
stainless steel 6476-866 2CKA006470A0009 10
1) Surface painted.
