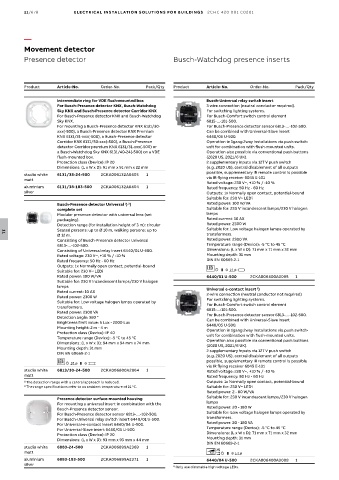

Page 1784 - Din prodcuts 2020

11/678 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Movement detector
Presence detector Busch-Watchdog presence inserts

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Intermediate ring for VDE flush-mounted box Busch-Universal relay switch insert
For Busch-Presence detector KNX, Busch-Watchdog 3 wire connection (neutral conductor required).
Sky KNX and Busch-Presence detector Corridor KNX For switching lighting systems.
For Busch-Presence detector KNX and Busch-Watchdog For Busch-Comfort switch control element
Sky KNX. 6815-...-101-500.
For mounting a Busch-Presence detector KNX 6131/30- For Busch-Presence detector sensor 6813-…-102-500.
xxx(-500), a Busch-Presence detector KNX Premium Can be combined with Universal-Slave insert
KNX 6131/31-xxx(-500), a Busch-Presence detector 6440/05 U-500.
Corridor KNX 6131/50-xxx(-500), a Busch-Presence Operation in 1gang 2way installations via push switch-
detector Corridor premium KNX 6131/51-xxx(-500) or unit for combination with flush-mounted units.
a Busch-Watchdog Sky KNX 6131/40-24(-500) on a VDE Operation also possible via conventional push buttons
flush-mounted box. (2020 US, 2021/6 UK).
Protection class (Device): IP 20 2 supplementary inputs via 127 V push switch
Dimensions: (L x W x D): 91 mm x 91 mm x 22 mm (e.g. 2020 US), central disablement of all outputs
possible, supplementary IR remote control is possible
studio white 6131/38-24-500 2CKA006132A0403 1
matt via IR flying receiver 6045 E-101
Rated voltage: 230 V~, +10 % / -10 %
aluminium 6131/38-183-500 2CKA006132A0404 1 Rated frequency: 50 Hz - 60 Hz
silver Outputs: 1x Normally open contact, potential-bound
Suitable for: 230 V~ LEDi
Busch-Presence detector Universal ) ) Rated power: 100 W/VA
1
2
complete set Suitable for: 230 V incandescent lamps/230 V halogen
Modular presence detector with universal lens (set lamps
packaging). Rated current: 10 AX
Detection range (for installation height of 3 m): circular Rated power: 2300 W
Seated persons: up to Ø 10 m, walking persons: up to Suitable for: Low voltage halogen lamps operated by
Ø 12 m. transformers.
11
Consisting of Busch-Presence detector Universal Rated power: 2300 VA
6813-…-102-500. Temperature range (Device): -5 °C to 45 °C
Consisting of Universal relay insert 6440/01 U-500. Dimensions: (L x W x D): 71 mm x 71 mm x 32 mm
Rated voltage: 230 V~, +10 % / -10 % Mounting depth: 31 mm
Rated frequency: 50 Hz - 60 Hz DIN EN 60669-2-1
Outputs: 1x Normally open contact, potential-bound LEDi
Suitable for: 230 V~ LEDi
Rated power: 100 W/VA 6440/01 U-500 2CKA006400A0085 1
Suitable for: 230 V incandescent lamps/230 V halogen
lamps Universal e-contact insert ) 1
Rated current: 10 AX 2-wire connection (neutral conductor not required)
Rated power: 2300 W For switching lighting systems.
Suitable for: Low voltage halogen lamps operated by For Busch-Comfort switch control element
transformers. 6815-...-101-500.
Rated power: 2300 VA For Busch-Presence detector sensor 6813-…-102-500.
Detection angle: 360 ° Can be combined with Universal-Slave insert
Brightness limit value: 5 Lux - 2000 Lux 6440/05 U-500.
Mounting height: 2 m - 4 m Operation in 1gang 2way installations via push switch-
Protection class (Device): IP 40 unit for combination with flush-mounted units.
Temperature range (Device): -5 °C to 45 °C Operation also possible via conventional push buttons
Dimensions: (L x W x D): 94 mm x 94 mm x 74 mm (2020 US, 2021/6 UK).
Mounting depth: 31 mm 2 supplementary inputs via 127 V push switch
DIN EN 60669-2-1
(e.g. 2020 US), central disablement of all outputs
LEDi possible, supplementary IR remote control is possible

via IR flying receiver 6045 E-101
studio white 6813/30-24-500 2CKA006800A2864 1 Rated voltage: 230 V~, +10 % / -10 %
matt Rated frequency: 50 Hz - 60 Hz
1) The detection range with a central approach is reduced. Outputs: 1x Normally open contact, potential-bound
2) The range specifications refer to an ambient temperature of 21 °C. Suitable for: 230 V~ LEDi
Rated power: 2 - 80 W/VA
Presence detector surface-mounted housing Suitable for: 230 V incandescent lamps/230 V halogen
For mounting a universal insert in combination with the lamps
Busch-Presence detector sensor. Rated power: 20 - 180 W
For Busch-Presence detector sensor 6813-…-102-500. Suitable for: Low voltage halogen lamps operated by
For Busch-Universal relay switch insert 6440/01 U-500. transformers.
For Universal-e-contact insert 6440/04 U-500. Rated power: 20 - 180 VA
For Universal-Slave insert 6440/05 U-500. Temperature range (Device): -5 °C to 45 °C
Protection class (Device): IP 20 Dimensions: (L x W x D): 71 mm x 71 mm x 32 mm
Dimensions: (L x W x D): 93 mm x 93 mm x 44 mm Mounting depth: 31 mm
DIN EN 60669-2-1
studio white 6883-24-500 2CKA006899A2369 1
matt
aluminium 6883-183-500 2CKA006899A2371 1 6440/04 U-500 2CKA006400A0088 1
silver 1) Only use dimmable high voltage LEDs.
