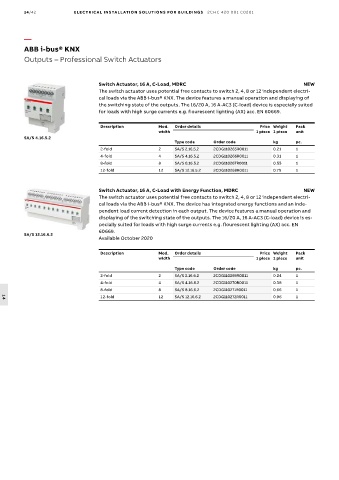

14/42 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
Outputs – Professional Switch Actuators

Switch Actuator, 16 A, C-Load, MDRC NEW
The switch actuator uses potential free contacts to switch 2, 4, 8 or 12 independent electri-
cal loads via the ABB i-bus® KNX. The device features a manual operation and displaying of
the switching state of the outputs. The 16/20 A, 16 A-AC3 (C-load) device is especially suited
for loads with high surge currents e.g. flourescent lighting (AX) acc. EN 60669.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
SA/S 4.16.5.2
Type code Order code kg pc.
2-fold 2 SA/S 2.16.5.2 2CDG110265R0011 0.21 1
4-fold 4 SA/S 4.16.5.2 2CDG110266R0011 0.31 1
8-fold 8 SA/S 8.16.5.2 2CDG110267R0011 0.55 1
12-fold 12 SA/S 12.16.5.2 2CDG110268R0011 0.79 1

Switch Actuator, 16 A, C-Load with Energy Function, MDRC NEW
The switch actuator uses potential free contacts to switch 2, 4, 8 or 12 independent electri-
cal loads via the ABB i-bus® KNX. The device has integrated energy functions and an inde-
pendent load current detection in each output. The device features a manual operation and
displaying of the switching state of the outputs. The 16/20 A, 16 A-AC3 (C-load) device is es-
pecially suited for loads with high surge currents e.g. flourescent lighting (AX) acc. EN
60669.
SA/S 12.16.6.2
Available October 2020

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
2-fold 2 SA/S 2.16.6.2 2CDG110269R0011 0.24 1
4-fold 4 SA/S 4.16.6.2 2CDG110270R0011 0.38 1
8-fold 8 SA/S 8.16.6.2 2CDG110271R0011 0.66 1
12-fold 12 SA/S 12.16.6.2 2CDG110272R0011 0.96 1
14
