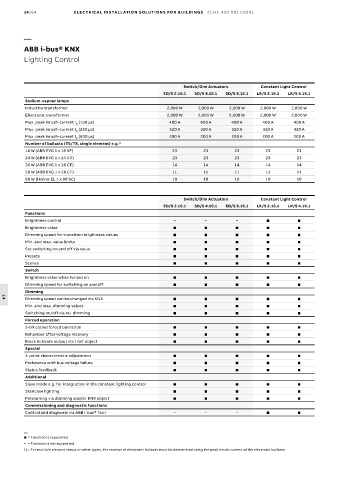

14/64 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201
—
ABB i-bus® KNX
Lighting Control
Switch/Dim Actuators Constant Light Control
SD/S 2.16.1 SD/S 4.16.1 SD/S 8.16.1 LR/S 2.16.1 LR/S 4.16.1
Sodium-vapour lamps
Inductive transformer 2,000 W 2,000 W 2,000 W 2,000 W 2,000 W
Electronic transformer 2,000 W 2,000 W 2,000 W 2,000 W 2,000 W
Max. peak inrush-current I p (150 μs) 400 A 400 A 400 A 400 A 400 A
Max. peak inrush-current I p (250 μs) 320 A 320 A 320 A 320 A 320 A
Max. peak inrush-current I p (600 μs) 200 A 200 A 200 A 200 A 200 A
Number of ballasts (T5/T8, single element) e.g. 1)
18 W (ABB EVG 1 x 18 SF) 23 23 23 23 23
24 W (ABB EVG 1 x 24 CY) 23 23 23 23 23
36 W (ABB EVG 1 x 36 CF) 14 14 14 14 14
58 W (ABB EVG 1 x 58 CF) 11 11 11 11 11
80 W (Helvar EL 1 x 80 SC) 10 10 10 10 10
Switch/Dim Actuators Constant Light Control
SD/S 2.16.1 SD/S 4.16.1 SD/S 8.16.1 LR/S 2.16.1 LR/S 4.16.1
Functions
Brightness control – – –
Brightness value
Dimming speed for transition brightness values
Min. and max. value limits
Set switching on and off via value
Presets
Scenes
Switch
Brightness value when turned on
Dimming speed for switching on and off
Dimming
Dimming speed can be changed via KNX
14
Min. and max. dimming values
Switching on/off via rel. dimming
Forced operation
2-bit coded forced operation
Behaviour after voltage recovery
Block Activate output via 1-bit object
Special
4-point characteristic adjustment
Preference with bus voltage failure
Status feedback
Additional
Slave mode e.g. for integration in the constant lighting control
Staircase lighting
Prewarning via dimming and/or KNX object
Commissioning and diagnostic functions
Control and diagnosis via ABB i-bus® Tool – – –
—
= Function is supported
– = Function is not supported
1) = For multiple element lamps or other types, the number of electronic ballasts must be determined using the peak inrush current of the electronic ballasts
