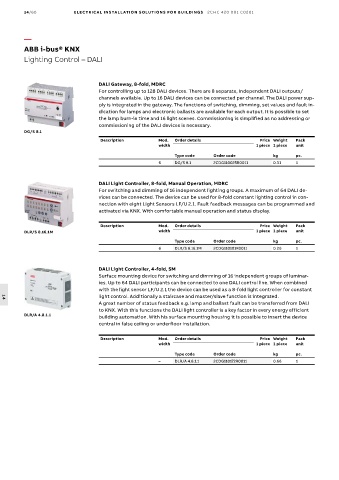

14/60 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
Lighting Control – DALI

DALI Gateway, 8-fold, MDRC
For controlling up to 128 DALI devices. There are 8 separate, independent DALI outputs/
channels available. Up to 16 DALI devices can be connected per channel. The DALI power sup-
ply is integrated in the gateway. The functions of switching, dimming, set values and fault in-
dication for lamps and electronic ballasts are available for each output. It is possible to set
the lamp burn-in time and 16 light scenes. Commissioning is simplified as no addressing or
commissioning of the DALI devices is necessary.
DG/S 8.1
Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit

Type code Order code kg pc.
6 DG/S 8.1 2CDG110025R0011 0.31 1

DALI Light Controller, 8-fold, Manual Operation, MDRC
For switching and dimming of 16 independent lighting groups. A maximum of 64 DALI de-
vices can be connected. The device can be used for 8-fold constant lighting control in con-
nection with eight Light Sensors LF/U 2.1. Fault feedback messages can be programmed and
activated via KNX. With comfortable manual operation and status display.

Description Mod. Order details Price Weight Pack
DLR/S 8.16.1M width 1 piece 1 piece unit
Type code Order code kg pc.
6 DLR/S 8.16.1M 2CDG110101R0011 0.26 1

DALI Light Controller, 4-fold, SM
Surface mounting device for switching and dimming of 16 independent groups of luminar-
ies. Up to 64 DALI participants can be connected to one DALI control line. When combined
with the light sensor LF/U 2.1 the device can be used as a 8-fold light controller for constant
light control. Additionally a staircase and master/slave function is integrated.
14
A great number of status feedback e.g. lamp and ballast fault can be transferred from DALI
to KNX. With this functions the DALI light controller is a key factor in every energy efficient
DLR/A 4.8.1.1 building automation. With his surface mounting housing it is possible to insert the device
central in false ceiling or underfloor installation.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
– DLR/A 4.8.1.1 2CDG110172R0011 0.66 1
