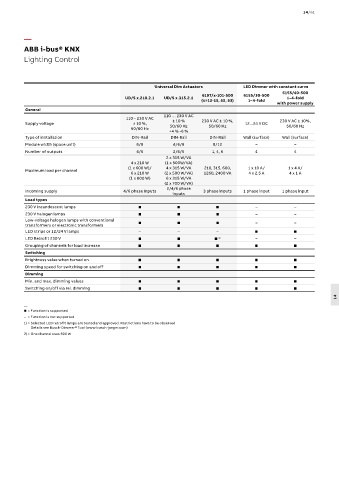

ABB i-bus® KNX
Lighting Control

Universal Dim Actuators LED Dimmer with constant curve
6155/40-500
6197/x-101-500 6155/30-500
UD/S x.210.2.1 UD/S x.315.2.1 1–4-fold
(x=12-15, 52, 53) 1–4-fold
with power supply
General
110 … 230 V AC
110 – 230 V AC ± 10 % 230 V AC ± 10 %, 230 V AC ± 10%,
Supply voltage ± 10 %, 50/60 Hz 50/60 Hz 12...24 V DC 50/60 Hz
50/60 Hz
+4 % -6 %
Type of installation DIN-Rail DIN-Rail DIN-Rail Wall (surface) Wall (surface)
Module width (space unit) 6/8 4/6/8 8/12 – –
Number of outputs 4/6 2/4/6 1, 4, 6 4 4
2 x 315 W/VA
4 x 210 W (1 x 500W/VA)
(1 x 600 W)/ 4 x 315 W/VA 210, 315, 600, 1 x 10 A/ 1 x 4 A/
Maximum load per channel
6 x 210 W (2 x 500 W/VA) 1260, 2400 VA 4 x 2.5 A 4 x 1 A
(1 x 800 W) 6 x 315 W/VA
(2 x 700 W/VA)
2/4/6 phase
Incoming supply 4/6 phase inputs 3 phase inputs 1 phase input 1 phase input
inputs
Load types
230 V incandescent lamps    – –
230 V halogen lamps    – –
Low-voltage halogen lamps with conventional
transformers or electronic transformers    – –
LED strips or 12/24 V lamps – – –  
LED Retrofit 230 V    1) – –
Grouping of channels for load increase     
Switching
Brightness value when turned on     
Dimming speed for switching on and off     
Dimming
Min. and max. dimming values     
Switching on/off via rel. dimming     
14

—
 = Function is supported
– = Function is not supported
1) = Selected LED retrofit lamps are tested and approved. Restrictions have to be observed
Details see Busch-Dimmer® Tool (www.busch-jaeger.com)
2) = One channel uses 500 W
