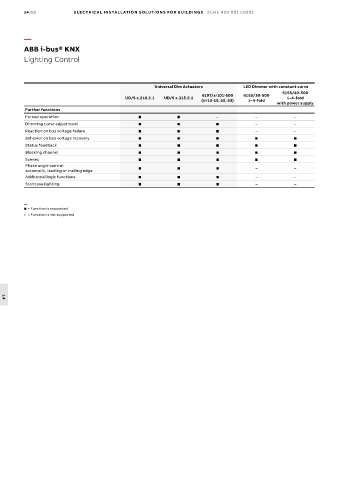

14/62 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
Lighting Control

Universal Dim Actuators LED Dimmer with constant curve
6155/40-500
6197/x-101-500 6155/30-500
UD/S x.210.2.1 UD/S x.315.2.1 1–4-fold
(x=12-15, 52, 53) 1–4-fold
with power supply
Further functions
Forced operation   – – –
Dimming curve adjustment    – –
Reaction on bus voltage failure    – –
Behavior on bus voltage recovery     
Status feedback     
Blocking channel     
Scenes     
Phase angle control:    – –
automatic, leading or trailing edge
Additional logic functions    – –
Staircase lighting    – –

—
 = Function is supported
– = Function is not supported

14
