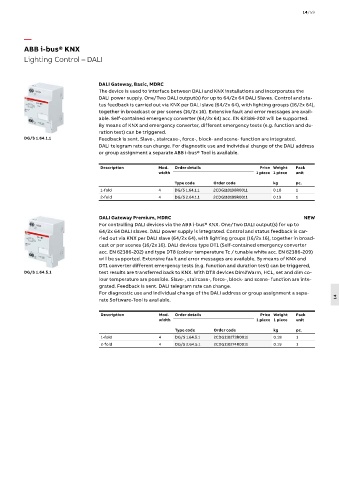

ABB i-bus® KNX
Lighting Control – DALI

DALI Gateway, Basic, MDRC
The device is used to interface between DALI and KNX installations and incorporates the
DALI power supply. One/Two DALI output(s) for up to 64/2x 64 DALI Slaves. Control and sta-
tus feedback is carried out via KNX per DALI slave (64/2x 64), with lighting groups (16/2x 64),
together in broadcast or per scenes (16/2x 16). Extensive fault and error messages are avail-
able. Self-contained emergency converter (64/2x 64) acc. EN 62386-202 will be supported.
By means of KNX and emergency converter, different emergency tests (e.g. function and du-
ration test) can be triggered.
DG/S 1.64.1.1 Feedback is sent. Slave-, staircase-, force-, block- and scene- function are integrated.
DALI telegram rate can change. For diagnostic use and individual change of the DALI address
or group assignment a separate ABB i-bus® Tool is available.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit

Type code Order code kg pc.
1-fold 4 DG/S 1.64.1.1 2CDG110198R0011 0.18 1
2-fold 4 DG/S 2.64.1.1 2CDG110199R0011 0.19 1

DALI Gateway Premium, MDRC NEW
For controlling DALI devices via the ABB i-bus® KNX. One/Two DALI output(s) for up to
64/2x 64 DALI slaves. DALI power supply is integrated. Control and status feedback is car-
ried out via KNX per DALI slave (64/2x 64), with lighting groups (16/2x 16), together in broad-
cast or per scenes (16/2x 16). DALI devices type DT1 (Self-contained emergency converter
acc. EN 62386-202) and type DT8 (colour temperature Tc / tunable white acc. EN 62386-209)
will be supported. Extensive fault and error messages are available. By means of KNX and
DT1 converter different emergency tests (e.g. function and duration test) can be triggered,
DG/S 1.64.5.1 test results are transferred back to KNX. With DT8 devices Dim2Warm, HCL, set and dim co-
lour temperature are possible. Slave-, staircase-, force-, block- and scene- function are inte-
grated. Feedback is sent. DALI telegram rate can change.
For diagnostic use and individual change of the DALI address or group assignment a sepa-
rate Software-Tool is available. 14

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
1-fold 4 DG/S 1.64.5.1 2CDG110273R0011 0.18 1
2-fold 4 DG/S 2.64.5.1 2CDG110274R0011 0.19 1
