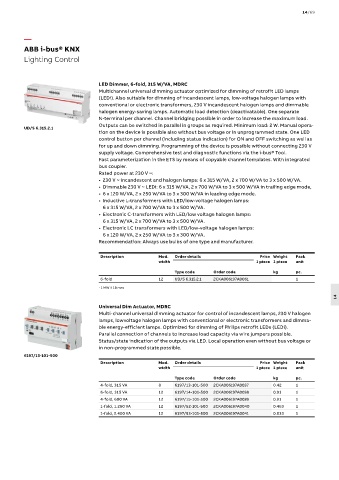

ABB i-bus® KNX
Lighting Control

LED Dimmer, 6-fold, 315 W/VA, MDRC
Multichannel universal dimming actuator optimized for dimming of retrofit LED lamps
(LEDi). Also suitable for dimming of incandescent lamps, low-voltage halogen lamps with
conventional or electronic transformers, 230 V incandescent halogen lamps and dimmable
halogen energy-saving lamps. Automatic load detection (deactivatable). One separate
N-terminal per channel. Channel bridging possible in order to increase the maximum load.
Outputs can be switched in parallel in groups as required. Minimum load: 2 W. Manual opera-
UD/S 6.315.2.1
tion on the device is possible also without bus voltage or in unprogrammed state. One LED
control button per channel (including status indication) for ON and OFF switching as well as
for up and down dimming. Programming of the device is possible without connecting 230 V
supply voltage. Comprehensive test and diagnostic functions via the i-bus® Tool.
Fast parameterization in the ETS by means of copyable channel templates. With integrated
bus coupler.
Rated power at 230 V ~:
• 230 V ~ incandescent and halogen lamps: 6 x 315 W/VA, 2 x 700 W/VA to 3 x 500 W/VA.
• Dimmable 230 V ~ LEDi: 6 x 315 W/VA, 2 x 700 W/VA to 3 x 500 W/VA in trailing edge mode,
• 6 x 120 W/VA, 2 x 250 W/VA to 3 x 300 W/VA in leading edge mode.
• Inductive L-transformers with LED/low-voltage halogen lamps:
6 x 315 W/VA, 2 x 700 W/VA to 3 x 500 W/VA.
• Electronic C-transformers with LED/low voltage halogen lamps:
6 x 315 W/VA, 2 x 700 W/VA to 3 x 500 W/VA.
• Electronic LC transformers with LED/low-voltage halogen lamps:
6 x 120 W/VA, 2 x 250 W/VA to 3 x 300 W/VA.
Recommendation: Always use bulbs of one type and manufacturer.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
6-fold 12 UD/S 6.315.2.1 2CKA006197A0061 1
- 1 MW ≙ 18 mm
14
Universal Dim Actuator, MDRC
Multi-channel universal dimming actuator for control of incandescent lamps, 230 V halogen
lamps, lowvoltage halogen lamps with conventional or electronic transformers and dimma-
ble energy-efficient lamps. Optimized for dimming of Philips retrofit LEDs (LEDi).
Parallel connection of channels to increase load capacity via wire jumpers possible.
Status/state indication of the outputs via LED. Local operation even without bus voltage or
in non-programmed state possible.
6197/13-101-500
Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
4-fold, 315 VA 8 6197/13-101-500 2CKA006197A0037 0.42 1
6-fold, 315 VA 12 6197/14-101-500 2CKA006197A0038 0.91 1
4-fold, 600 VA 12 6197/15-101-500 2CKA006197A0039 0.91 1
1-fold, 1.260 VA 12 6197/52-101-500 2CKA006197A0040 0.463 1
1-fold, 2.400 VA 12 6197/53-101-500 2CKA006197A0041 0.833 1
