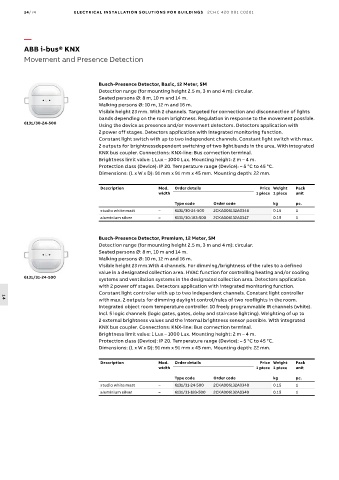

14/74 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
Movement and Presence Detection

Busch-Presence Detector, Basic, 12 Meter, SM
Detection range (for mounting height 2.5 m, 3 m and 4 m): circular.
Seated persons Ø: 8 m, 10 m and 14 m.
Walking persons Ø: 10 m, 12 m and 16 m.
Visible height 23 mm. With 2 channels. Targeted for connection and disconnection of lights
bands depending on the room brightness. Regulation in response to the movement possible.
6131/30-24-500
Using the device as presence and/or movement detectors. Detectors application with
2 power off stages. Detectors application with integrated monitoring function.
Constant light switch with up to two independent channels. Constant light switch with max.
2 outputs for brightnessdependent switching of two light bands in the area. With integrated
KNX bus coupler. Connections: KNX-line: Bus connection terminal.
Brightness limit value: 1 Lux – 1000 Lux. Mounting height: 2 m – 4 m.
Protection class (Device): IP 20. Temperature range (Device): – 5 °C to 45 °C.
Dimensions: (L x W x D): 91 mm x 91 mm x 45 mm. Mounting depth: 22 mm.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
studio white matt – 6131/30-24-500 2CKA006132A0346 0.15 1
aluminium silver – 6131/30-183-500 2CKA006132A0347 0.15 1

Busch-Presence Detector, Premium, 12 Meter, SM
Detection range (for mounting height 2.5 m, 3 m and 4 m): circular.
Seated persons Ø: 8 m, 10 m and 14 m.
Walking persons Ø: 10 m, 12 m and 16 m.
Visible height 23 mm.With 4 channels. For dimming/brightness of the rules to a defined
value in a designated collection area. HVAC function for controlling heating and/or cooling
6131/31-24-500
systems and ventilation systems in the designated collection area. Detectors application
with 2 power off stages. Detectors application with integrated monitoring function.
Constant light controller with up to two independent channels. Constant light controller
with max. 2 outputs for dimming daylight control/rules of two rooflights in the room.
14
Integrated object room temperature controller. 10 freely programmable IR channels (white).
Incl. 5 logic channels (logic gates, gates, delay and staircase lighting). Weighting of up to
2 external brightness values and the internal brightness sensor possible. With integrated
KNX bus coupler. Connections: KNX-line: Bus connection terminal.
Brightness limit value: 1 Lux – 1000 Lux. Mounting height: 2 m – 4 m.
Protection class (Device): IP 20. Temperature range (Device): – 5 °C to 45 °C.
Dimensions: (L x W x D): 91 mm x 91 mm x 45 mm. Mounting depth: 22 mm.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
studio white matt – 6131/31-24-500 2CKA006132A0348 0.15 1
aluminium silver – 6131/31-183-500 2CKA006132A0349 0.15 1
