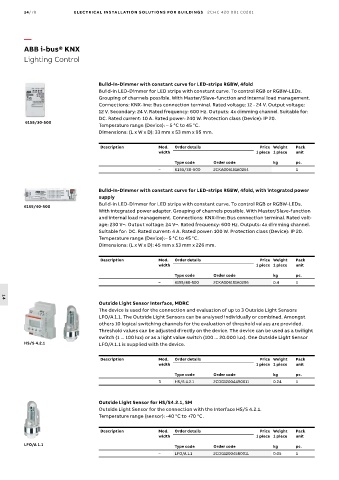

14/70 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
Lighting Control

Build-In-Dimmer with constant curve for LED-strips RGBW, 4fold
Build-in LED-Dimmer for LED strips with constant curve. To control RGB or RGBW-LEDs.
Grouping of channels possible. With Master/Slave-function and internal load management.
Connections: KNX-line: Bus connection terminal. Rated voltage: 12 - 24 V. Output voltage:
12 V. Secondary: 24 V. Rated frequency: 600 Hz. Outputs: 4x dimming channel. Suitable for:
DC. Rated current: 10 A. Rated power: 240 W. Protection class (Device): IP 20.
6155/30-500
Temperature range (Device): – 5 °C to 45 °C.
Dimensions: (L x W x D): 33 mm x 53 mm x 95 mm.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
– 6155/30-500 2CKA006151A0254 1

Build-In-Dimmer with constant curve for LED-strips RGBW, 4fold, with integrated power
supply
Build-in LED-Dimmer for LED strips with constant curve. To control RGB or RGBW-LEDs.
6155/40-500
With integrated power adapter. Grouping of channels possible. With Master/Slave-function
and internal load management. Connections: KNX-line: Bus connection terminal. Rated volt-
age: 230 V~. Output voltage: 24 V~. Rated frequency: 600 Hz. Outputs: 4x dimming channel.
Suitable for: DC. Rated current: 4 A. Rated power: 100 W. Protection class (Device): IP 20.
Temperature range (Device):– 5 °C to 45 °C.
Dimensions: (L x W x D): 45 mm x 53 mm x 226 mm.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
– 6155/40-500 2CKA006151A0256 0.4 1

14
Outside Light Sensor Interface, MDRC
The device is used for the connection and evaluation of up to 3 Outside Light Sensors
LFO/A 1.1. The Outside Light Sensors can be analysed individually or combined. Amongst
others 10 logical switching channels for the evaluation of threshold values are provided.
Threshold values can be adjusted directly on the device. The device can be used as a twilight
switch (1 ... 100 lux) or as a light value switch (100 ... 20.000 lux). One Outside Light Sensor
HS/S 4.2.1 LFO/A 1.1 is supplied with the device.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit

Type code Order code kg pc.
3 HS/S 4.2.1 2CDG120044R0011 0.24 1

Outside Light Sensor for HS/S4.2.1, SM
Outside Light Sensor for the connection with the Interface HS/S 4.2.1.
Temperature range (sensor): -40 °C to +70 °C.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
LFO/A 1.1 Type code Order code kg pc.
– LFO/A 1.1 2CDG120045R0011 0.05 1
