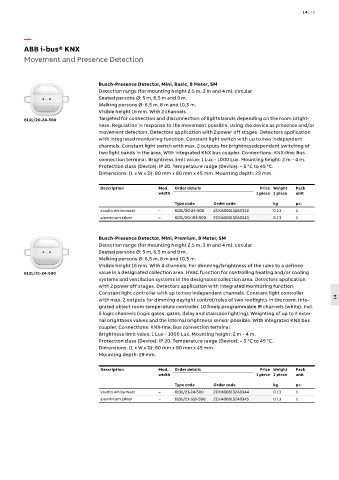

ABB i-bus® KNX
Movement and Presence Detection

Busch-Presence Detector, Mini, Basic, 8 Meter, SM
Detection range (for mounting height 2.5 m, 3 m and 4 m): circular.
Seated persons Ø: 5 m, 6,5 m and 9 m.
Walking persons Ø: 6,5 m, 8 m and 10,5 m.
Visible height 16 mm. With 2 channels.
6131/20-24-500 Targeted for connection and disconnection of lights bands depending on the room bright-
ness. Regulation in response to the movement possible. Using the device as presence and/or
movement detectors. Detectors application with 2 power off stages. Detectors application
with integrated monitoring function. Constant light switch with up to two independent
channels. Constant light switch with max. 2 outputs for brightnessdependent switching of
two light bands in the area. With integrated KNX bus coupler. Connections: KNX-line: Bus
connection terminal. Brightness limit value: 1 Lux – 1000 Lux. Mounting height: 2 m – 4 m.
Protection class (Device): IP 20. Temperature range (Device): – 5 °C to 45 °C.
Dimensions: (L x W x D): 80 mm x 80 mm x 45 mm. Mounting depth: 29 mm.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
studio white matt – 6131/20-24-500 2CKA006132A0342 0.13 1
aluminium silver – 6131/20-183-500 2CKA006132A0343 0.13 1

Busch-Presence Detector, Mini, Premium, 8 Meter, SM
Detection range (for mounting height 2.5 m, 3 m and 4 m): circular.
Seated persons Ø: 5 m, 6,5 m and 9 m.
Walking persons Ø: 6,5 m, 8 m and 10,5 m.
Visible height 16 mm. With 4 channels. For dimming/brightness of the rules to a defined
6131/21-24-500 value in a designated collection area. HVAC function for controlling heating and/or cooling
systems and ventilation systems in the designated collection area. Detectors application
with 2 power off stages. Detectors application with integrated monitoring function.
Constant light controller with up to two independent channels. Constant light controller
with max. 2 outputs for dimming daylight control/rules of two rooflights in the room. Inte- 14
grated object room temperature controller. 10 freely programmable IR channels (white). Incl.
5 logic channels (logic gates, gates, delay and staircase lighting). Weighting of up to 2 exter-
nal brightness values and the internal brightness sensor possible. With integrated KNX bus
coupler. Connections: KNX-line: Bus connection terminal.
Brightness limit value: 1 Lux – 1000 Lux. Mounting height: 2 m – 4 m.
Protection class (Device): IP 20. Temperature range (Device): – 5 °C to 45 °C.
Dimensions: (L x W x D): 80 mm x 80 mm x 45 mm.
Mounting depth: 29 mm.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
studio white matt – 6131/21-24-500 2CKA006132A0344 0.13 1
aluminium silver – 6131/21-183-500 2CKA006132A0345 0.13 1
