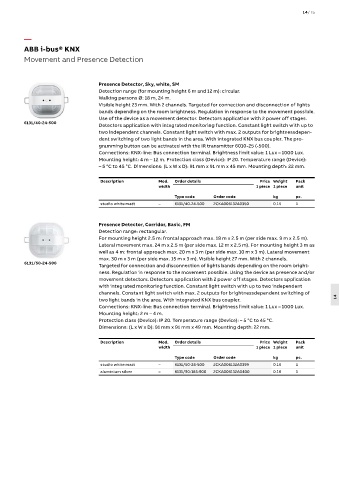

ABB i-bus® KNX
Movement and Presence Detection

Presence Detector, Sky, white, SM
Detection range (for mounting height 6 m and 12 m): circular.
Walking persons Ø: 18 m, 24 m.
Visible height 23 mm. With 2 channels. Targeted for connection and disconnection of lights
bands depending on the room brightness. Regulation in response to the movement possible.
Use of the device as a movement detector. Detectors application with 2 power off stages.
6131/40-24-500
Detectors application with integrated monitoring function. Constant light switch with up to
two independent channels. Constant light switch with max. 2 outputs for brightnessdepen-
dent switching of two light bands in the area. With integrated KNX bus coupler. The pro-
gramming button can be activated with the IR transmitter 6010-25 (-500).
Connections: KNX-line: Bus connection terminal. Brightness limit value: 1 Lux – 1000 Lux.
Mounting height: 4 m – 12 m. Protection class (Device): IP 20. Temperature range (Device):
– 5 °C to 45 °C. Dimensions: (L x W x D): 91 mm x 91 mm x 45 mm. Mounting depth: 22 mm.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
studio white matt – 6131/40-24-500 2CKA006132A0350 0.15 1

Presence Detector, Corridor, Basic, FM
Detection range: rectangular.
For mounting height 2.5 m: frontal approach max. 18 m x 2.5 m (per side max. 9 m x 2.5 m).
Lateral movement max. 24 m x 2.5 m (per side max. 12 m x 2.5 m). For mounting height 3 m as
well as 4 m: frontal approach max. 20 m x 3 m (per side max. 10 m x 3 m). Lateral movement
max. 30 m x 3 m (per side max. 15 m x 3 m). Visible height 27 mm. With 2 channels.
6131/50-24-500
Targeted for connection and disconnection of lights bands depending on the room bright-
ness. Regulation in response to the movement possible. Using the device as presence and/or
movement detectors. Detectors application with 2 power off stages. Detectors application
with integrated monitoring function. Constant light switch with up to two independent
channels. Constant light switch with max. 2 outputs for brightnessdependent switching of
two light bands in the area. With integrated KNX bus coupler. 14
Connections: KNX-line: Bus connection terminal. Brightness limit value: 1 Lux – 1000 Lux.
Mounting height: 2 m – 4 m.
Protection class (Device): IP 20. Temperature range (Device): – 5 °C to 45 °C.
Dimensions: (L x W x D): 91 mm x 91 mm x 49 mm. Mounting depth: 22 mm.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
studio white matt – 6131/50-24-500 2CKA006132A0399 0.16 1
aluminium silver – 6131/50-183-500 2CKA006132A0400 0.16 1
