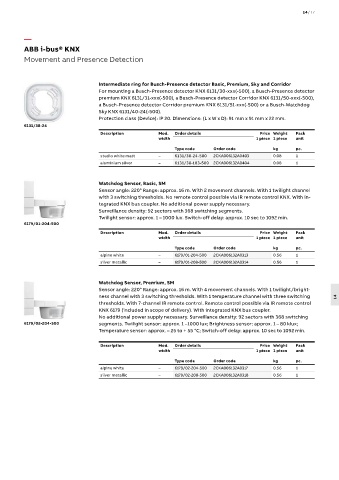

Page 1891 - Din prodcuts 2020

14/77

—
ABB i-bus® KNX
Movement and Presence Detection

Intermediate ring for Busch-Presence detector Basic, Premium, Sky and Corridor
For mounting a Busch-Presence detector KNX 6131/30-xxx(-500), a Busch-Presence detector
premium KNX 6131/31-xxx(-500), a Busch-Presence detector Corridor KNX 6131/50-xxx(-500),
a Busch-Presence detector Corridor premium KNX 6131/51-xxx(-500) or a Busch-Watchdog
Sky KNX 6131/40-24(-500).
Protection class (Device): IP 20. Dimensions: (L x W x D): 91 mm x 91 mm x 22 mm.
6131/38-24
Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
studio white matt – 6131/38-24-500 2CKA006132A0403 0.08 1
aluminium silver – 6131/38-183-500 2CKA006132A0404 0.08 1

Watchdog Sensor, Basic, SM
Sensor angle: 220° Range: approx. 16 m. With 2 movement channels. With 1 twilight channel
with 3 switching thresholds. No remote control possible via IR remote control KNX. With in-
tegrated KNX bus coupler. No additional power supply necessary.
Surveillance density: 92 sectors with 368 switching segments.
Twilight sensor: approx. 1 – 1000 lux. Switch-off delay: approx. 10 sec to 1092 min.
6179/01-204-500
Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
alpine white – 6179/01-204-500 2CKA006132A0313 0.56 1
silver metallic – 6179/01-208-500 2CKA006132A0314 0.56 1

Watchdog Sensor, Premium, SM
Sensor angle: 220° Range: approx. 16 m. With 4 movement channels. With 1 twilight/bright-
ness channel with 3 switching thresholds. With 1 temperature channel with three switching 14
thresholds. With 7-channel IR remote control. Remote control possible via IR remote control
KNX 6179 (included in scope of delivery). With integrated KNX bus coupler.
No additional power supply necessary. Surveillance density: 92 sectors with 368 switching
6179/02-204-500 segments. Twilight sensor: approx. 1 –1000 lux; Brightness sensor: approx. 1 – 80 klux;
Temperature sensor: approx. – 25 to + 55 °C; Switch-off delay: approx. 10 sec to 1092 min.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
alpine white – 6179/02-204-500 2CKA006132A0317 0.56 1
silver metallic – 6179/02-208-500 2CKA006132A0318 0.56 1
