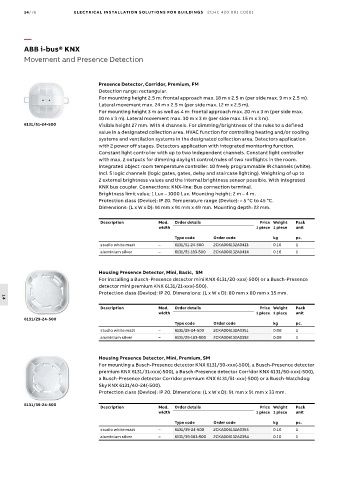

14/76 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
Movement and Presence Detection

Presence Detector, Corridor, Premium, FM
Detection range: rectangular.
For mounting height 2.5 m: frontal approach max. 18 m x 2.5 m (per side max. 9 m x 2.5 m).
Lateral movement max. 24 m x 2.5 m (per side max. 12 m x 2.5 m).
For mounting height 3 m as well as 4 m: frontal approach max. 20 m x 3 m (per side max.
10 m x 3 m). Lateral movement max. 30 m x 3 m (per side max. 15 m x 3 m).
6131/51-24-500 Visible height 27 mm. With 4 channels. For dimming/brightness of the rules to a defined
value in a designated collection area. HVAC function for controlling heating and/or cooling
systems and ventilation systems in the designated collection area. Detectors application
with 2 power off stages. Detectors application with integrated monitoring function.
Constant light controller with up to two independent channels. Constant light controller
with max. 2 outputs for dimming daylight control/rules of two rooflights in the room.
Integrated object room temperature controller. 10 freely programmable IR channels (white).
Incl. 5 logic channels (logic gates, gates, delay and staircase lighting). Weighting of up to
2 external brightness values and the internal brightness sensor possible. With integrated
KNX bus coupler. Connections: KNX-line: Bus connection terminal.
Brightness limit value: 1 Lux – 1000 Lux. Mounting height: 2 m – 4 m.
Protection class (Device): IP 20. Temperature range (Device): – 5 °C to 45 °C.
Dimensions: (L x W x D): 91 mm x 91 mm x 49 mm. Mounting depth: 22 mm.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit

Type code Order code kg pc.
studio white matt – 6131/51-24-500 2CKA006132A0413 0.16 1
aluminium silver – 6131/51-183-500 2CKA006132A0414 0.16 1

Housing Presence Detector, Mini, Basic, SM
For installing a Busch-Presence detector mini KNX 6131/20-xxx(-500) or a Busch-Presence
detector mini premium KNX 6131/21-xxx(-500).
Protection class (Device): IP 20. Dimensions: (L x W x D): 80 mm x 80 mm x 35 mm.
14
Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
6131/29-24-500
Type code Order code kg pc.
studio white matt – 6131/29-24-500 2CKA006132A0351 0.08 1
aluminium silver – 6131/29-183-500 2CKA006132A0352 0.08 1

Housing Presence Detector, Mini, Premium, SM
For mounting a Busch-Presence detector KNX 6131/30-xxx(-500), a Busch-Presence detector
premium KNX 6131/31-xxx(-500), a Busch-Presence detector Corridor KNX 6131/50-xxx(-500),
a Busch-Presence detector Corridor premium KNX 6131/51-xxx(-500) or a Busch-Watchdog
Sky KNX 6131/40-24(-500).
Protection class (Device): IP 20. Dimensions: (L x W x D): 91 mm x 91 mm x 33 mm.

6131/39-24-500
Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
studio white matt – 6131/39-24-500 2CKA006132A0353 0.10 1
aluminium silver – 6131/39-183-500 2CKA006132A0354 0.10 1
