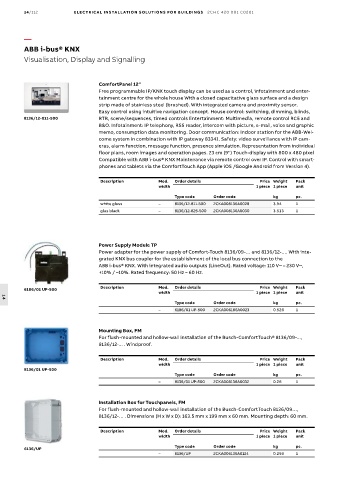

14/112 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
Visualisation, Display and Signalling

ComfortPanel 12"
Free programmable IP/KNX touch display can be used as a control, infotainment and enter-
tainment centre for the whole house With a closed capacitative glass surface and a design
strip made of stainless steel (brushed). With integrated camera and proximity sensor.
Easy control using intuitive navigation concept. House control: switching, dimming, blinds,
8136/12-811-500 RTR, scene/sequences, timed controls Entertainment: Multimedia, remote control RC5 and
B&O. Infotainment: IP telephony, RSS reader, intercom with picture, e-mail, voice and graphic
memo, consumption data monitoring. Door communication: Indoor station for the ABB-Wel-
come system in combination with IP gateway 83341. Safety: video surveillance with IP cam-
eras, alarm function, message function, presence simulation. Representation from individual
floor plans, room images and operation pages. 23 cm (9") Touch-display with 800 x 480 pixel
Compatible with ABB i-bus® KNX Maintenance via remote control over IP. Control with smart-
phones and tablets via the ComfortTouch App (Apple iOS /Google Android from Version 4).

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
white glass – 8136/12-811-500 2CKA008136A0028 3.94 1
glas black – 8136/12-825-500 2CKA008136A0030 3.513 1

Power Supply Module TP
Power adapter for the power supply of Comfort-Touch 8136/09-… and 8136/12-…. With inte-
grated KNX bus coupler for the establishment of the local bus connection to the
ABB i-bus® KNX. With integrated audio outputs (LineOut). Rated voltage: 110 V~ – 230 V~,
+10% / –10%. Rated frequency: 50 Hz – 60 Hz.

Description Mod. Order details Price Weight Pack
6186/01 UP-500
width 1 piece 1 piece unit
14
Type code Order code kg pc.
– 6186/01 UP-500 2CKA006186A0023 0.526 1

Mounting Box, FM
For flush-mounted and hollow-wall installation of the Busch-ComfortTouch® 8136/09-...,
8136/12-... . Windproof.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
8136/01 UP-500
Type code Order code kg pc.
– 8136/01 UP-500 2CKA008136A0032 0.26 1

Installation Box for Touchpanels, FM
For flush-mounted and hollow-wall installation of the Busch-ComfortTouch 8136/09…,
8136/12-… . Dimensions (H x W x D): 163.5 mm x 199 mm x 60 mm. Mounting depth: 60 mm.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
6136/UP
– 6136/UP 2CKA006136A0124 0.293 1
