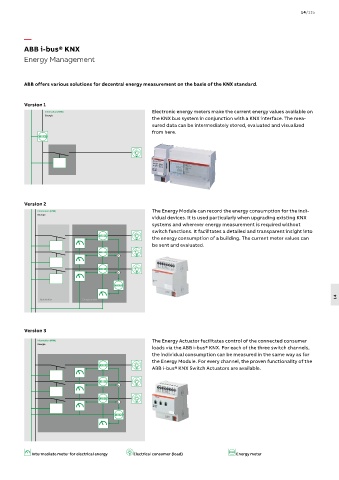

ABB i-bus® KNX
Energy Management
ABB offers various solutions for decentral energy measurement on the basis of the KNX standard.
Information (KNX)
Energie
Version 1
Electronic energy meters make the current energy values available on
Information (KNX)
Energie
the KNX bus system in conjunction with a KNX interface. The mea-
sured data can be intermediately stored, evaluated and visualized
from here.
+
+
Version 2
The Energy Module can record the energy consumption for the indi-
Information (KNX)
Energie
vidual devices. It is used particularly when upgrading existing KNX
systems and wherever energy measurement is required without
switch functions. It facilitates a detailed and transparent insight into
the energy consumption of a building. The current meter values can
be sent and evaluated.
+
+
14
Schaltaktor Energiemodul
Version 3
Information (KNX) The Energy Actuator facilitates control of the connected consumer
Energie
loads via the ABB i-bus® KNX. For each of the three switch channels,
the individual consumption can be measured in the same way as for
the Energy Module. For every channel, the proven functionality of the
ABB i-bus® KNX Switch Actuators are available.
+
+
Information (KNX)
Intermediate meter for electrical energy Electrical consumer (load) Energy meter
Energie
+
+
Schaltaktor Energiemodul
