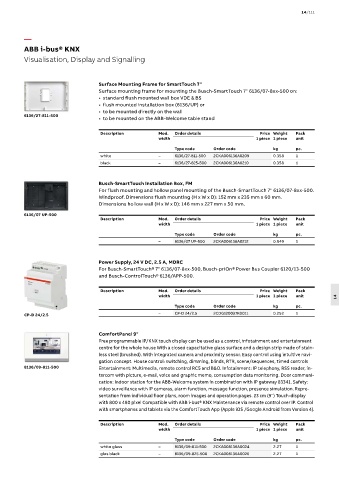

14/111

—
ABB i-bus® KNX
Visualisation, Display and Signalling

Surface Mounting Frame for SmartTouch 7''
Surface mounting frame for mounting the Busch-SmartTouch 7" 6136/07-8xx-500 on:
• standard flush mounted wall box VDE & BS
• flush mounted installation box (6136/UP) or
• to be mounted directly on the wall
6136/27-811-500
• to be mounted on the ABB-Welcome table stand

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
white – 6136/27-811-500 2CKA006136A0209 0.358 1
black – 6136/27-825-500 2CKA006136A0210 0.358 1

Busch-SmartTouch Installation Box, FM
For flush mounting and hollow panel mounting of the Busch-SmartTouch 7" 6136/07-8xx-500.
Windproof. Dimensions flush mounting (H x W x D): 152 mm x 235 mm x 60 mm.
Dimensions hollow wall (H x W x D): 146 mm x 227 mm x 50 mm.
6136/07 UP-500
Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit

Type code Order code kg pc.
– 6136/07 UP-500 2CKA006136A0212 0.549 1

Power Supply, 24 V DC, 2.5 A, MDRC
For Busch-SmartTouch® 7" 6136/07-8xx-500, Busch-priOn® Power Bus Coupler 6120/13-500
and Busch-ControlTouch® 6136/APP-500.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit 14
Type code Order code kg pc.
CP-D 24/2.5 – CP-D 24/2.5 2CDG120037R0011 0.252 1

ComfortPanel 9"
Free programmable IP/KNX touch display can be used as a control, infotainment and entertainment
centre for the whole house With a closed capacitative glass surface and a design strip made of stain-
less steel (brushed). With integrated camera and proximity sensor. Easy control using intuitive navi-
gation concept. House control: switching, dimming, blinds, RTR, scene/sequences, timed controls
8136/09-811-500 Entertainment: Multimedia, remote control RC5 and B&O. Infotainment: IP telephony, RSS reader, in-
tercom with picture, e-mail, voice and graphic memo, consumption data monitoring. Door communi-
cation: Indoor station for the ABB-Welcome system in combination with IP gateway 83341. Safety:
video surveillance with IP cameras, alarm function, message function, presence simulation. Repre-
sentation from individual floor plans, room images and operation pages. 23 cm (9") Touch-display
with 800 x 480 pixel Compatible with ABB i-bus® KNX Maintenance via remote control over IP. Control
with smartphones and tablets via the ComfortTouch App (Apple iOS /Google Android from Version 4).

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
white glass – 8136/09-811-500 2CKA008136A0024 2.27 1
glas black – 8136/09-825-500 2CKA008136A0026 2.27 1
