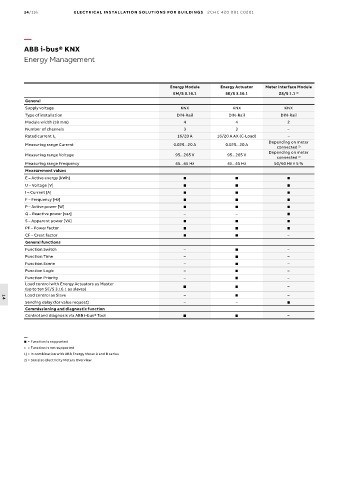

14/116 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
Energy Management

Energy Module Energy Actuator Meter Interface Module
EM/S 3.16.1 SE/S 3.16.1 ZS/S 1.1 1)
General
Supply voltage KNX KNX KNX
Type of installation DIN-Rail DIN-Rail DIN-Rail
Module width (18 mm) 4 4 2
Number of channels 3 3 –
16/20 A 16/20 A AX (C-Load) –
Rated current I n
Depending on meter
Measuring range Current 0.025...20 A 0.025...20 A
connected 2)
Depending on meter
Measuring range Voltage 95...265 V 95...265 V
connected 2)
Measuring range Frequency 45...65 Hz 45...65 Hz 50/60 Hz ± 5 %
Measurement values
E – Active energy [kWh]   
U – Voltage [V]   
I – Current [A]   
F – Frequency [Hz]   
P – Active power [W]   
Q – Reactive power [var] – – 
S – Apparent power [VA]   
PF – Power factor   
CF – Crest factor   –
General functions
Function Switch –  –
Function Time –  –
Function Scene –  –
Function Logic –  –
Function Priority –  –
Load control with Energy Actuators as Master
(up to ten SE/S 3.16.1 as slaves)   –
Load control as Slave –  –
14
Sending delay (for value request) – – 
Commissioning and diagnostic function
Control and diagnosis via ABB i-bus® Tool   –

—
 = Function is supported
– = Function is not supported
1) = In combination with ABB Energy Meter A and B series
2) = See also Electricity Meters Overview
