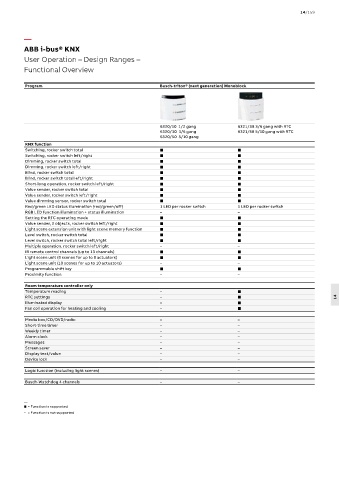

ABB i-bus® KNX
User Operation – Design Ranges –
Functional Overview

Program Busch-triton® (next generation) Monoblock

6320/10 1/2 gang 6321/38 3/6 gang with RTC
6320/30 3/6 gang 6321/58 5/10 gang with RTC
6320/50 5/10 gang
KNX function
Switching, rocker switch total ■ ■
Switching, rocker switch left/right ■ ■
Dimming, rocker switch total ■ ■
Dimming, rocker switch left/right ■ ■
Blind, rocker switch total ■ ■
Blind, rocker switch total left/right ■ ■
Short-long operation, rocker switch left/right ■ ■
Value sender, rocker switch total ■ ■
Value sender, rocker switch left/right ■ ■
Value dimming sensor, rocker switch total ■ ■
Red/green LED status illumination (red/green/off) 1 LED per rocker switch 1 LED per rocker switch
RGB LED function illumination + status illumination – –
Setting the RTC operating mode ■ ■
Value sender, 2 objects, rocker switch left/right ■ ■
Light scene extension unit with light scene memory function ■ ■
Level switch, rocker switch total ■ ■
Level switch, rocker switch total left/right ■ ■
Multiple operation, rocker switch left/right – –
IR remote control channels (up to 13 channels) ■ ■
Light scene unit (8 scenes for up to 8 actuators) ■ ■
Light scene unit (10 scenes for up to 10 actuators) – –
Programmable shift key ■ ■
Proximity function – –
Room temperature controller only
Temperature reading – ■
RTC settings – ■ 14
Illuminated display – ■
Fan coil operation for heating and cooling – ■

Media box/CD/DVD/radio – –
Short-time timer – –
Weekly timer – –
Alarm clock – –
Messages – –
Screen saver – –
Display text/value – –
Device lock – –

Logic function (including light scenes) – –
Busch-Watchdog 4 channels – –

—
 = Function is supported
– = Function is not supported
