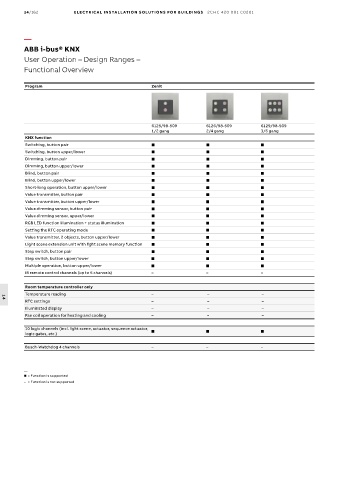

14/162 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
User Operation – Design Ranges –
Functional Overview

Program Zenit

6125/98-509 6126/98-509 6129/98-509
1/2 gang 2/4 gang 3/6 gang
KNX function
Switching, button pair ■ ■ ■
Switching, button upper/lower ■ ■ ■
Dimming, button pair ■ ■ ■
Dimming, button upper/lower ■ ■ ■
Blind, button pair ■ ■ ■
Blind, button upper/lower ■ ■ ■
Short-long operation, button upper/lower ■ ■ ■
Value transmitter, button pair ■ ■ ■
Value transmitter, button upper/lower ■ ■ ■
Value dimming sensor, button pair ■ ■ ■
Value dimming sensor, upper/lower ■ ■ ■
RGB LED function illumination + status illumination ■ ■ ■
Setting the RTC operating mode ■ ■ ■
Value transmitter, 2 objects, button upper/lower ■ ■ ■
Light scene extension unit with light scene memory function ■ ■ ■
Step switch, button pair ■ ■ ■
Step switch, button upper/lower ■ ■ ■
Multiple operation, button upper/lower ■ ■ ■
IR remote control channels (up to 5 channels) – – –

Room temperature controller only
Temperature reading – – –
RTC settings – – –
14
Illuminated display – – –
Fan coil operation for heating and cooling – – –

10 logic channels (incl. light scene, actuator, sequence actuator, ■ ■ ■
logic gates, etc.)

Busch-Watchdog 4 channels – – –

—
 = Function is supported
– = Function is not supported
