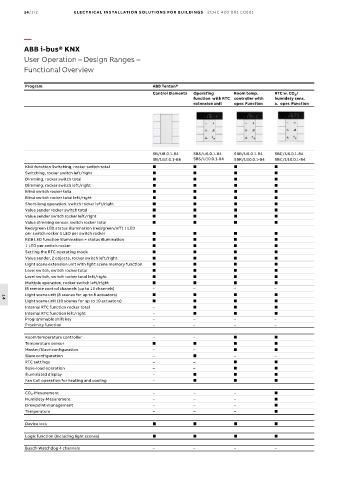

14/172 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
User Operation – Design Ranges –
Functional Overview

Program ABB Tenton®
Control Elements Operating Room temp. RTC w. CO 2 /
function with RTC controller with humidety sens.
extension unit oper. Function a. oper. Function

SB/U8.0.1-84 SBS/U6.0.1-84 SBR/U6.0.1-84 SBC/U6.0.1-84
SB/U12.0.1-84 SBS/U10.0.1-84 SBR/U10.0.1-84 SBC/U10.0.1-84
KNX function Switching, rocker switch total ■ ■ ■ ■
Switching, rocker switch left/right ■ ■ ■ ■
Dimming, rocker switch total ■ ■ ■ ■
Dimming, rocker switch left/right ■ ■ ■ ■
Blind switch rocker tota ■ ■ ■ ■
Blind switch rocker total left/right ■ ■ ■ ■
Short-long operation, switch rocker left/right ■ ■ ■ ■
Value sender rocker switch total ■ ■ ■ ■
Value sender switch rocker left/right ■ ■ ■ ■
Value dimming sensor, switch rocker total ■ ■ ■ ■
Red/green LED status illumination (red/green/off) 1 LED
per switch rocker 1 LED per switch rocker ■ ■ ■ ■
RGB LED function illumination + status illumination ■ ■ ■ ■
1 LED per switch rocker ■ ■ ■ ■
Setting the RTC operating mode ■ ■ ■ ■
Value sender, 2 objects, rocker switch left/right ■ ■ ■ ■
Light scene extension unit with light scene memory function ■ ■ ■ ■
Level switch, switch rocker total ■ ■ ■ ■
Level switch, switch rocker total left/right ■ ■ ■ ■
Multiple operation, rocker switch left/right ■ ■ ■ ■
IR remote control channels (up to 13 channels) – – – –
Light scene unit (8 scenes for up to 8 actuators) ■ ■ ■ ■
Light scene unit (10 scenes for up to 10 actuators) ■ ■ ■ ■
14
Internal RTC function rocker total – ■ ■ ■
Internal RTC function left/right – ■ ■ ■
Programmable shift key – – – –
Proximity function – – – –
Room temperature controller – – ■ ■
Temperature sensor ■ ■ ■ ■
Master/Slave configuration – – ■ ■
Slave configuration – ■ – –
RTC settings – – ■ ■
Base-load operation – – ■ ■
Illuminated display – ■ ■ ■
Fan Coil operation for heating and cooling – ■ ■ ■

CO 2 -Mesurement – – – ■
Humidety-Mesurement – – – ■
Drewpoint-management – – – ■
Temperature – – – ■
Device lock ■ ■ ■ ■

Logic function (including light scenes) ■ ■ ■ ■

Busch-Watchdog 4 channels – – – –
