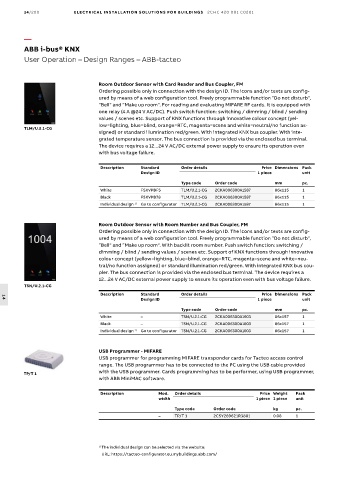

14/200 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
User Operation – Design Ranges – ABB-tacteo

Room Outdoor Sensor with Card Reader and Bus Coupler, FM
Ordering possible only in connection with the design ID. The icons and/or texts are config-
ured by means of a web configuration tool. Freely programmable function ”Do not disturb“,
”Bell“ and ”Make up room“. For reading and evaluating MIFARE RF cards. It is equipped with
one relay (4 A @24 V AC/DC). Push switch function: switching / dimming / blind / sending
values / scenes etc. Support of KNX functions through innovative colour concept (yel-
low=lighting, blue=blind, orange=RTC, magenta=scene and white=neutral/no function as-
TLM/U.2.1-CG
signed) or standard illumination red/green. With integrated KNX bus coupler. With inte-
grated temperature sensor. The bus connection is provided via the enclosed bus terminal.
The device requires a 12...24 V AC/DC external power supply to ensure its operation even
with bus voltage failure.

Description Standard Order details Price Dimensions Pack
Design ID 1 piece unit

Type code Order code mm pc.
White F5XVPBF5 TLM/U.2.1-CG 2CKA006300A1587 86x115 1
Black F5XVPB78 TLM/U.2.1-CG 2CKA006300A1587 86x115 1
Individual design 1) Go to confi gurator TLM/U.2.1-CG 2CKA006300A1587 86x115 1

Room Outdoor Sensor with Room Number and Bus Coupler, FM
Ordering possible only in connection with the design ID. The icons and/or texts are config-
ured by means of a web configuration tool. Freely programmable function ”Do not disturb“,
”Bell“ and ”Make up room“. With backlit room number. Push switch function: switching /
dimming / blind / sending values / scenes etc. Support of KNX functions through innovative
colour concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=neu-
tral/no function assigned) or standard illumination red/green. With integrated KNX bus cou-
pler. The bus connection is provided via the enclosed bus terminal. The device requires a
12...24 V AC/DC external power supply to ensure its operation even with bus voltage failure.
TSN/U.2.1-CG
Description Standard Order details Price Dimensions Pack
Design ID 1 piece unit
14
Type code Order code mm pc.
White – TSN/U.2.1-CG 2CKA006300A1603 86x157 1
Black – TSN/U.2.1-CG 2CKA006300A1603 86x157 1
Individual design 1) Go to confi gurator TSN/U.2.1-CG 2CKA006300A1603 86x157 1

USB Programmer - MIFARE
USB programmer for programming MIFARE transponder cards for Tacteo access control
range. The USB programmer has to be connected to the PC using the USB cable provided
with the USB programmer. Cards programming has to be performer, using USB programmer,
TP/T 1
with ABB MiniMAC software.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
– TP/T 1 2CSY289621R3801 0.08 1

The individual design can be selected via the website:
1)
URL: https://tacteo-configurator.eu.mybuildings.abb.com/
