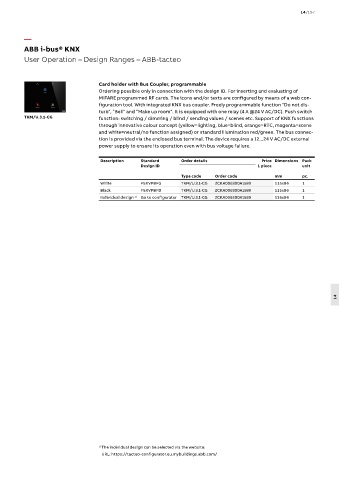

ABB i-bus® KNX
User Operation – Design Ranges – ABB-tacteo

Card holder with Bus Coupler, programmable
Ordering possible only in connection with the design ID. For inserting and evaluating of
MIFARE programmed RF cards. The icons and/or texts are configured by means of a web con-
figuration tool. With integrated KNX bus coupler. Freely programmable function ”Do not dis-
turb“, ”Bell“ and ”Make up room“. It is equipped with one relay (4 A @24 V AC/DC). Push switch
TKM/U.3.1-CG function: switching / dimming / blind / sending values / scenes etc. Support of KNX functions
through innovative colour concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene
and white=neutral/no function assigned) or standard illumination red/green. The bus connec-
tion is provided via the enclosed bus terminal. The device requires a 12...24 V AC/DC external
power supply to ensure its operation even with bus voltage failure.

Description Standard Order details Price Dimensions Pack
Design ID 1 piece unit
Type code Order code mm pc.
White F5XVPBFG TKM/U.3.1-CG 2CKA006300A1589 115x86 1
Black F5XVPBFD TKM/U.3.1-CG 2CKA006300A1589 115x86 1
Individual design 1) Go to confi gurator TKM/U.3.1-CG 2CKA006300A1589 115x86 1

14

The individual design can be selected via the website:
1)
URL: https://tacteo-configurator.eu.mybuildings.abb.com/
