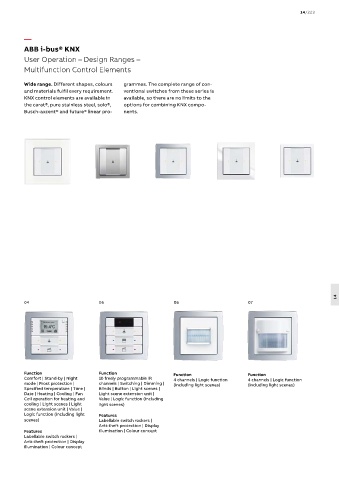

ABB i-bus® KNX
User Operation – Design Ranges –
Multifunction Control Elements

Wide range. Different shapes, colours grammes. The complete range of con-
and materials fulfil every requirement. ventional switches from these series is
KNX control elements are available in available, so there are no limits to the
the carat®, pure stainless steel, solo®, options for combining KNX compo-
Busch-axcent® and future® linear pro- nents.

14
04 05 06 07

Function Function Function Function
Comfort | Stand-by | Night 10 freely programmable IR 4 channels | Logic function 4 channels | Logic function
mode | Frost protection | channels | Switching | Dimming | (including light scenes) (including light scenes)
Specified temperature | Time | Blinds | Button | Light scenes |
Date | Heating | Cooling | Fan Light scene extension unit |
Coil operation for heating and Value | Logic function (including
cooling | Light scenes | Light light scenes)
scene extension unit | Value |
Logic function (including light Features
scenes) Labellable switch rockers |
Anti-theft protection | Display
Features illumination | Colour concept
Labellable switch rockers |
Anti-theft protection | Display
illumination | Colour concept
