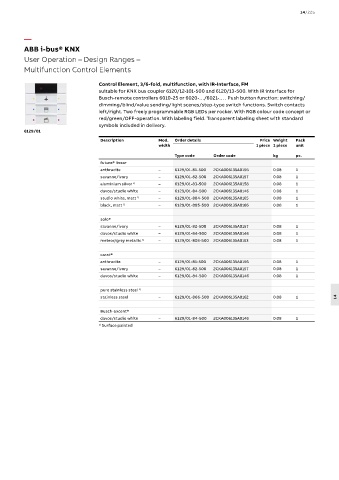

ABB i-bus® KNX
User Operation – Design Ranges –
Multifunction Control Elements

Control Element, 3/6-fold, multifunction, with IR-Interface, FM
suitable for KNX bus coupler 6120/12-101-500 and 6120/13-500. With IR interface for
Busch-remote controllers 6010-25 or 6020-…/6021-… . Push button function: switching/
dimming/blind/value sending/light scenes/step-type switch functions. Switch contacts
left/right. Two freely programmable RGB LEDs per rocker. With RGB colour code concept or
red/green/OFF-operation. With labeling field. Transparent labeling sheet with standard
symbols included in delivery.
6129/01
Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit

Type code Order code kg pc.
future® linear
anthracite – 6129/01-81-500 2CKA006135A0156 0.08 1
savanne/ivory – 6129/01-82-500 2CKA006135A0157 0.08 1
aluminium silver 1) – 6129/01-83-500 2CKA006135A0158 0.08 1
davos/studio white – 6129/01-84-500 2CKA006135A0146 0.08 1
studio white, matt 1) – 6129/01-884-500 2CKA006135A0165 0.08 1
black, matt 1) – 6129/01-885-500 2CKA006135A0166 0.08 1

solo®
savanne/ivory – 6129/01-82-500 2CKA006135A0157 0.08 1
davos/studio white – 6129/01-84-500 2CKA006135A0146 0.08 1
meteor/grey metallic 1) – 6129/01-803-500 2CKA006135A0163 0.08 1

carat®
anthracite – 6129/01-81-500 2CKA006135A0156 0.08 1
savanne/ivory – 6129/01-82-500 2CKA006135A0157 0.08 1
davos/studio white – 6129/01-84-500 2CKA006135A0146 0.08 1

pure stainless steel 1)
stainless steel – 6129/01-866-500 2CKA006135A0162 0.08 1 14

Busch-axcent®
davos/studio white – 6129/01-84-500 2CKA006135A0146 0.08 1
1) Surface painted
