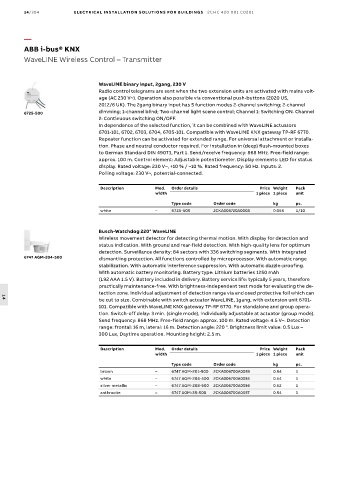

14/304 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
WaveLINE Wireless Control – Transmitter

WaveLINE binary input, 2gang, 230 V
Radio control telegrams are sent when the two extension units are activated with mains volt-
age (AC 230 V~). Operation also possible via conventional push-buttons (2020 US,
2012/6 UK). The 2gang binary input has 5 function modes 2-channel switching; 2-channel
6725-500 dimming; 1-channel blind; Two-channel light scene control; Channel 1: Switching ON. Channel
2: Continuous switching ON/OFF.
In dependence of the selected function, it can be combined with WaveLINE actuators
6701-101, 6702, 6703, 6704, 6705-101. Compatible with WaveLINE KNX gateway TP-RF 6770.
Repeater function can be activated for extended range. For universal attachment or installa-
tion. Phase and neutral conductor required. For installation in (deep) flush-mounted boxes
to German Standard DIN 49073, Part 1. Send/receive frequency: 868 MHz. Free-field range:
approx. 100 m. Control element: Adjustable potentiometer. Display elements: LED for status
display. Rated voltage: 230 V~, +10 % / –10 %. Rated frequency: 50 Hz. Inputs: 2.
Polling voltage: 230 V~, potential-connected.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
white – 6725-500 2CKA006720A0008 0.066 1/10

Busch-Watchdog 220° WaveLINE
Wireless movement detector for detecting thermal motion. With display for detection and
status indication. With ground and rear-field detection. With high-quality lens for optimum
detection. Surveillance density: 84 sectors with 336 switching segments. With integrated
6747 AGM-204-500 dismantling protection. All functions controlled by microprocessor. With automatic range
stabilization. With automatic interference suppression. With automatic dazzle-proofing.
With automatic battery monitoring. Battery type: Lithium batteries 1250 mAh
(L92 AAA 1.5 V). Battery included in delivery. Battery service life: typically 5 years, therefore
practically maintenance-free. With brightness-independent test mode for evaluating the de-
tection zone. Individual adjustment of detection range via enclosed protective foil which can
be cut to size. Combinable with switch actuator WaveLINE, 1gang, with extension unit 6701-
14
101. Compatible with WaveLINE KNX gateway TP-RF 6770. For standalone and group opera-
tion. Switch-off delay: 3 min. (single mode), individually adjustable at actuator (group mode).
Send frequency: 868 MHz. Free-field range: approx. 100 m. Rated voltage: 4.5 V–. Detection
range: frontal: 16 m, lateral: 16 m. Detection angle: 220 °. Brightness limit value: 0.5 Lux –
300 Lux, Daytime operation. Mounting height: 2.5 m.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
brown – 6747 AGM-201-500 2CKA006700A0038 0.54 1
white – 6747 AGM-204-500 2CKA006700A0035 0.54 1
silver metallic – 6747 AGM-208-500 2CKA006700A0036 0.52 1
anthracite – 6747 AGM-35-500 2CKA006700A0037 0.54 1
