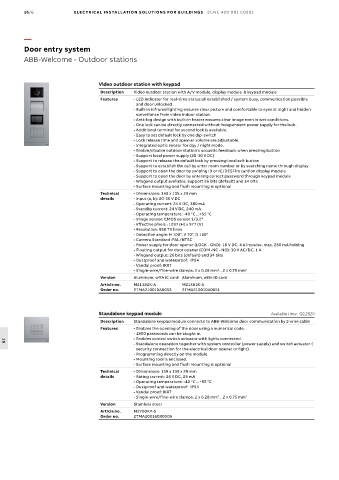

ABB-Welcome - Outdoor stations

Video outdoor station with keypad
Description Video outdoor station with A/V module, display module & keypad module
Features - LED indicater for real-time status:all established / system busy, communication possible
and door unlocked.
- Built-in infrared lighting ensures clear picture and comfortable to eyes at night and hidden
surveillance from video indoor station.
- Anti-fog design with built-in heater ensures clear image even in wet conditions.
- One lock can be directly connected without independent power supply for the lock.
- Additional terminal for second lock is available.
- Easy to set default lock by one dip-switch
- Lock release time and speaker volume are adjustable.
- Integrated optic sensor for day / night mode.
- Enable/disable outdoor station's acoustic feedback when pressing button
- Support local power supply (20-30 V DC)
- Support to release the default lock by pressing local exit button
- Support to establish the call by enter room number or by searching name through display
- Support to open the door by swiping ID or IC/DESFire card on display module
- Support to open the door by entering correct password through keypad module
- Wiegand output available, support 26 bits (default) and 34 bits
- Surface mounting and flush mounting is optional
Technical - Dimensions: 349 x 135 x 29 mm
details - Input (a, b): 20-30 V DC
- Operating current: 24 V DC, 380 mA
- Standby current: 24 V DC, 240 mA
- Operating temperature: -40 °C…+55 °C
- Image sensor: CMOS sensor 1/3.2"
- Effective pixels : 1297 (H) x 977 (V)
- Resolution: 550 TV lines
- Detection angle: H 100°, V 70°, D 130°
- Camera Standard :PAL/NTSC
- Power supply for door opener (LOCK - GND): 18 V DC, 4 A impulse, max. 250 mA holding
- Floating output for door opener (COM -NC - NO): 30 V AC/DC, 1 A
- Wiegand output: 26 bits (default) and 34 bits
- Dustproof and waterproof: IP54
- Vandal proof: IK07
2
- Single-wire/fine-wire clamps: 2 x 0.28 mm ...2 x 0.75 mm 2
Version Aluminum, with IC card Aluminum, with ID card
Article no. M21382K-A M21381K-A
Order no. 2TMA210010A0053 2TMA210010A0051

Standalone keypad module Available time: Q2,2020
Description Standalone keypad module connects to ABB-Welcome door communication by 2-wire cable
Features - Enables the opening of the door using a numerical code.
- 1800 passwords can be taught in.
- Enables control switch actuator with lights connected.
- Standalone operation together with system controller (power supply) and switch actuator (
16
security connection for the electrical door opener or light).
- Programming directly on the module.
- Mounting tool is enclosed.
- Surface mounting and flush mounting is optional

Technical - Dimensions: 139 x 135 x 29 mm
details - Rating current: 24 V DC, 25 mA
- Operating temperature: -40 °C…+55 °C
- Dustproof and waterproof: IP54
- Vandal proof: IK07
2
- Single-wire/fine-wire clamps: 2 x 0.28 mm ...2 x 0.75 mm 2
Version Stainless steel
Article no. M2700KP-S
Order no. 2TMA200160X0005
