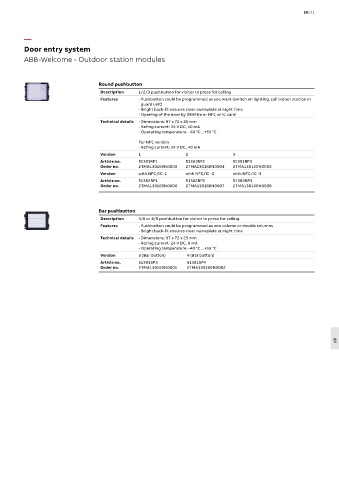

Door entry system
ABB-Welcome - Outdoor station modules

Round pushbutton
Description 1/2/3 pushbutton for visitor to press for calling
Features - Pushbutton could be programmed as you want (switch on lighting, call indoor station or
guard unit)
- Bright back-lit ensures clear nameplate at night time
- Opening of the door by DESFire or NFC or IC card
Technical details - Dimensions: 97 x 72 x 25 mm
- Rating current: 24 V DC, 10 mA
- Operating temperature: -40 °C…+55 °C

For NFC version
- Rating current: 24 V DC, 40 mA
Version 1 2 3
Article no. 51381RP1 51381RP2 51381RP3
Order no. 2TMA130160N0003 2TMA130160N0004 2TMA130160N0005
Version with NFC/IC -1 with NFC/IC -2 with NFC/IC -3
Article no. 51382RP1 51382RP2 51382RP3
Order no. 2TMA130160N0006 2TMA130160N0007 2TMA130160N0008

Bar pushbutton
Description 3/6 or 4/8 pushbutton for visitor to press for calling
Features - Pushbutton could be programmed as one column or double columns
- Bright back-lit ensures clear nameplate at night time
Technical details - Dimensions: 97 x 72 x 25 mm
- Rating current: 24 V DC, 8 mA
- Operating temperature: -40 °C…+55 °C
Version 3 (Bar button) 4 (Bar button)
Article no. 51381SP3 51381SP4
Order no. 2TMA130160N0001 2TMA130160N0002
