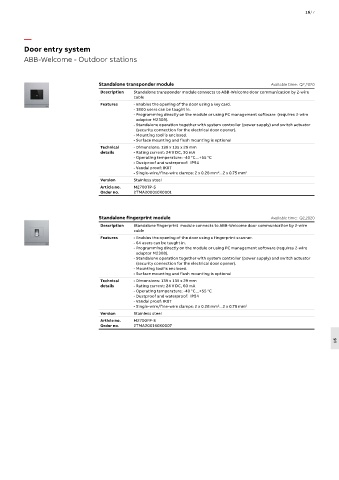

Page 2219 - Din prodcuts 2020

16/7

—
Door entry system
ABB-Welcome - Outdoor stations

Standalone transponder module Available time: Q2,2020
Description Standalone transponder module connects to ABB-Welcome door communication by 2-wire
cable
Features - Enables the opening of the door using a key card.
- 1800 users can be taught in.
- Programming directly on the module or using PC management software (requires 2-wire
adaptor M2308).
- Standalone operation together with system controller (power supply) and switch actuator
(security connection for the electrical door opener).
- Mounting tool is enclosed.
- Surface mounting and flush mounting is optional
Technical - Dimensions: 139 x 135 x 29 mm
details - Rating current: 24 V DC, 30 mA
- Operating temperature: -40 °C…+55 °C
- Dustproof and waterproof: IP54
- Vandal proof: IK07
- Single-wire/fine-wire clamps: 2 x 0.28 mm ...2 x 0.75 mm 2
2
Version Stainless steel
Article no. M2700TP-S
Order no. 2TMA200010X0001

Standalone fingerprint module Available time: Q2,2020
Description Standalone fingerprint module connects to ABB-Welcome door communication by 2-wire
cable
Features - Enables the opening of the door using a fingerprint scanner.
- 64 users can be taught in.
- Programming directly on the module or using PC management software (requires 2-wire
adaptor M2308).
- Standalone operation together with system controller (power supply) and switch actuator
(security connection for the electrical door opener).
- Mounting tool is enclosed.
- Surface mounting and flush mounting is optional
Technical - Dimensions: 139 x 135 x 29 mm
details - Rating current: 24 V DC, 60 mA
- Operating temperature: -40 °C…+55 °C
- Dustproof and waterproof: IP54
- Vandal proof: IK07
2
- Single-wire/fine-wire clamps: 2 x 0.28 mm ...2 x 0.75 mm 2
Version Stainless steel
Article no. M2700FP-S
Order no. 2TMA200160X0007

16
