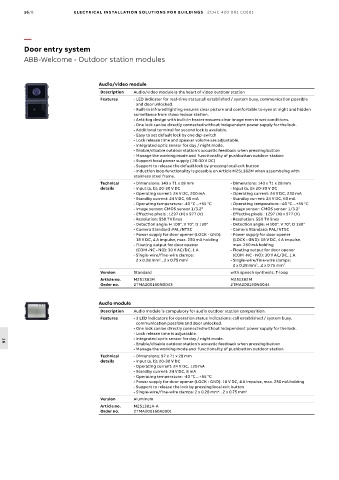

Door entry system
ABB-Welcome - Outdoor station modules

Audio/video module
Description Audio/video module is the heart of video outdoor station
Features - LED indicater for real-time status:all established / system busy, communication possible
and door unlocked.
- Built-in infrared lighting ensures clear picture and comfortable to eyes at night and hidden
surveillance from video indoor station.
- Anti-fog design with built-in heater ensures clear image even in wet conditions.
- One lock can be directly connected without independent power supply for the lock.
- Additional terminal for second lock is available.
- Easy to set default lock by one dip-switch
- Lock release time and speaker volume are adjustable.
- Integrated optic sensor for day / night mode.
- Enable/disable outdoor station's acoustic feedback when pressing button
- Manage the working mode and functionality of pushbutton outdoor station
- Support local power supply ( 20-30 V DC)
- Support to release the default lock by pressing local exit button
- Induction loop functionality is possible on Article M251382M when assembeing with
stainless steel frame.
Technical - Dimensions: 143 x 71 x 28 mm - Dimensions: 143 x 71 x 28 mm
details - Input (a, b): 20-30 V DC - Input (a, b): 20-30 V DC
- Operating current: 24 V DC, 200 mA - Operating current: 24 V DC, 230 mA
- Standby current: 24 V DC, 60 mA - Standby current: 24 V DC, 60 mA
- Operating temperature: -40 °C…+55 °C - Operating temperature: -40 °C…+55 °C
- Image sensor: CMOS sensor 1/3.2" - Image sensor: CMOS sensor 1/3.2"
- Effective pixels : 1297 (H) x 977 (V) - Effective pixels : 1297 (H) x 977 (V)
- Resolution: 550 TV lines - Resolution: 550 TV lines
- Detection angle: H 100°, V 70°, D 130° - Detection angle: H 100°, V 70°, D 130°
- Camera Standard :PAL/NTSC - Camera Standard: PAL/NTSC
- Power supply for door opener (LOCK - GND): - Power supply for door opener
18 V DC, 4 A impulse, max. 250 mA holding (LOCK - GND): 18 V DC, 4 A impulse,
- Floating output for door opener max. 250 mA holding
(COM -NC - NO): 30 V AC/DC, 1 A - Floating output for door opener
- Single-wire/fine-wire clamps: (COM -NC - NO): 30 V AC/DC, 1 A
2
2 x 0.28 mm ...2 x 0.75 mm 2 - Single-wire/fine-wire clamps:
2
2 x 0.28 mm ...2 x 0.75 mm 2
Version Standard with speech synthesis, T-loop
Article no. M251381M M251382M
Order no. 2TMA200160N0043 2TMA200160N0044

Audio module
Description Audio module is compulsory for audio outdoor station composition.
Features - 3 LED indicators for operation status indications: call established / system busy,
communication possible and door unlocked.
- One lock can be directly connected without independent power supply for the lock.
- Lock release time is adjustable.
- Integrated optic sensor for day / night mode.
- Enable/disable outdoor station's acoustic feedback when pressing button
16
- Manage the working mode and functionality of pushbutton outdoor station
Technical - Dimensions: 97 x 71 x 28 mm
details - Input (a, b): 20-30 V DC
- Operating current: 24 V DC, 120 mA
- Standby current: 24 V DC, 8 mA
- Operating temperature: -40 °C…+55 °C
- Power supply for door opener (LOCK - GND): 18 V DC, 4 A impulse, max. 250 mA holding
- Support to release the lock by pressing local exit button
2
- Single-wire/fine-wire clamps: 2 x 0.28 mm ...2 x 0.75 mm 2
Version Aluminum
Article no. M251381A-A
Order no. 2TMA200160A0001
