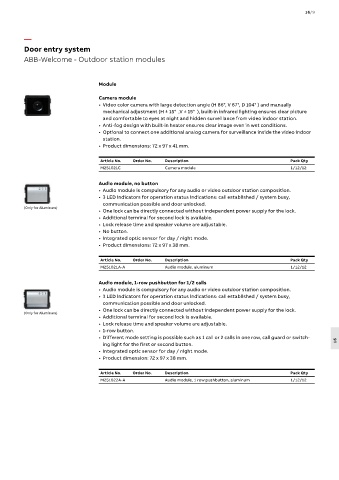

P. 2221
16/9
—
Door entry system
ABB-Welcome - Outdoor station modules
Module
Camera module
• Video color camera with large detection angle (H 86°, V 67°, D 104° ) and manually
mechanical adjustment (H ± 15° ,V ± 15° ), built-in infrared lighting ensures clear picture
and comfortable to eyes at night and hidden surveillance from video indoor station.
• Anti-fog design with built-in heater ensures clear image even in wet conditions.
• Optional to connect one additional analog camera for surveillance inside the video indoor
station.
• Product dimensions: 72 x 97 x 41 mm.
Article No. Order No. Description Pack Qty
M251021C Camera module 1/12/12
Audio module, no button
• Audio module is compulsory for any audio or video outdoor station composition.
• 3 LED indicators for operation status indications: call established / system busy,
communication possible and door unlocked.
(Only for Aluminum)
• One lock can be directly connected without independent power supply for the lock.
• Additional terminal for second lock is available.
• Lock release time and speaker volume are adjustable.
• No button.
• Integrated optic sensor for day / night mode.
• Product dimensions: 72 x 97 x 38 mm.
Article No. Order No. Description Pack Qty
M251021A-A Audio module, aluminum 1/12/12
Audio module, 1-row pushbutton for 1/2 calls
• Audio module is compulsory for any audio or video outdoor station composition.
• 3 LED indicators for operation status indications: call established / system busy,
communication possible and door unlocked.
• One lock can be directly connected without independent power supply for the lock.
(Only for Aluminum)
• Additional terminal for second lock is available.
• Lock release time and speaker volume are adjustable.
• 1-row button.
• Different mode setting is possible such as 1 call or 2 calls in one row, call guard or switch- 16
ing light for the first or second button.
• Integrated optic sensor for day / night mode.
• Product dimension: 72 x 97 x 38 mm.
Article No. Order No. Description Pack Qty
M251022A-A Audio module, 1 row pushbutton, aluminum 1/12/12
