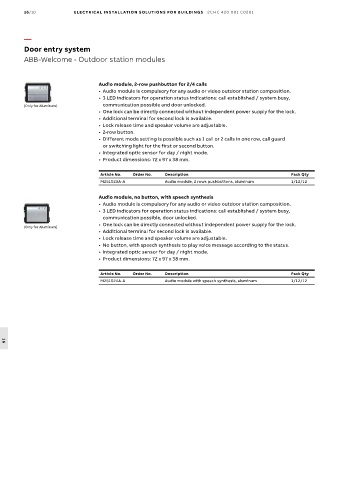

16/10 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Door entry system
ABB-Welcome - Outdoor station modules

Audio module, 2-row pushbutton for 2/4 calls
• Audio module is compulsory for any audio or video outdoor station composition.
• 3 LED indicators for operation status indications: call established / system busy,
(Only for Aluminum) communication possible and door unlocked.
• One lock can be directly connected without independent power supply for the lock.
• Additional terminal for second lock is available.
• Lock release time and speaker volume are adjustable.
• 2-row button.
• Different mode setting is possible such as 1 call or 2 calls in one row, call guard
or switching light for the first or second button.
• Integrated optic sensor for day / night mode.
• Product dimensions: 72 x 97 x 38 mm.

Article No. Order No. Description Pack Qty
M251023A-A Audio module, 2 rows pushbuttons, aluminum 1/12/12

Audio module, no button, with speech synthesis
• Audio module is compulsory for any audio or video outdoor station composition.
• 3 LED indicators for operation status indications: call established / system busy,
communication possible, door unlocked.
• One lock can be directly connected without independent power supply for the lock.
(Only for Aluminum)
• Additional terminal for second lock is available.
• Lock release time and speaker volume are adjustable.
• No button, with speech synthesis to play voice message according to the status.
• Integrated optic sensor for day / night mode.
• Product dimensions: 72 x 97 x 38 mm.

Article No. Order No. Description Pack Qty
M251024A-A Audio module with speech synthesis, aluminum 1/12/12
