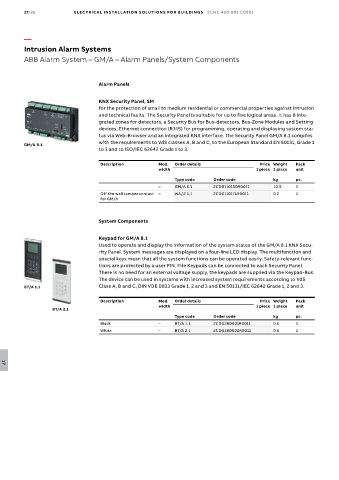

17/26 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Intrusion Alarm Systems
ABB Alarm System – GM/A – Alarm Panels/System Components

Alarm Panels

KNX Security Panel, SM
for the protection of small to medium residential or commercial properties against intrusion
and technical faults. The Security Panel is suitable for up to five logical areas. It has 8 inte-
grated zones for detectors, a Security Bus for Bus-detectors, Bus-Zone Modules and Setting
devices, Ethernet connection (RJ45) for programming, operating and displaying system sta-
tus via Web-Browser and an integrated KNX interface. The Security Panel GM/A 8.1 complies
with the requirements to VdS classes A, B and C, to the European Standard EN 50131, Grade 1
GM/A 8.1
to 3 and to ISO/IEC 62642 Grade 1 to 3.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit

Type code Order code kg pc.
– GM/A 8.1 2CDG110150R0011 10.5 1
Off the wall tamper contact – WA/Z 1.1 2CDG110174R0011 0.2 1
for GM/A

System Components

Keypad for GM/A 8.1
Used to operate and display the information of the system states of the GM/A 8.1 KNX Secu-
rity Panel. System messages are displayed on a four-line LCD display. The multifunction and
special keys mean that all the system functions can be operated easily. Safety-relevant func-
tions are protected by a user PIN. Fife Keypads can be connected to each Security Panel.
There is no need for an external voltage supply, the keypads are supplied via the Keypad-Bus.
The device can be used in systems with increased system requirements according to VdS
BT/A 1.1 Class A, B and C, DIN VDE 0833 Grade 1, 2 and 3 and EN 50131/IEC 62642 Grade 1, 2 and 3.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
BT/A 2.1
Type code Order code kg pc.
Black – BT/A 1.1 2CDG280001R0011 0.5 1
White – BT/A 2.1 2CDG280002R0011 0.5 1

17
