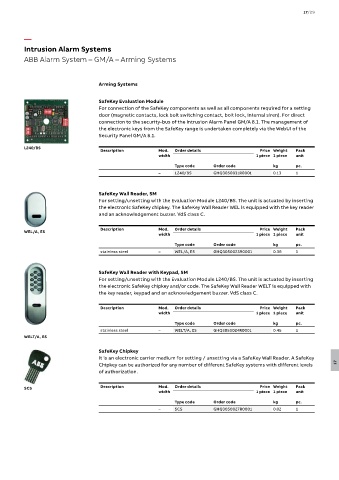

Intrusion Alarm Systems
ABB Alarm System – GM/A – Arming Systems

Arming Systems

SafeKey Evaluation Module
For connection of the SafeKey components as well as all components required for a setting
door (magnetic contacts, lock bolt switching contact, bolt lock, internal siren). For direct
connection to the security-bus of the Intrusion Alarm Panel GM/A 8.1. The management of
the electronic keys from the SafeKey range is undertaken completely via the WebUI of the
Security Panel GM/A 8.1.

L240/BS
Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
– L240/BS GHQ3050031R0001 0.13 1

SafeKey Wall Reader, SM
For setting/unsetting with the Evaluation Module L240/BS. The unit is actuated by inserting
the electronic SafeKey chipkey. The SafeKey Wall Reader WEL is equipped with the key reader
and an acknowledgement buzzer. VdS class C.

Description Mod. Order details Price Weight Pack
WEL/A, ES
width 1 piece 1 piece unit
Type code Order code kg pc.
stainless steel – WEL/A, ES GHQ3050023R0001 0.38 1

SafeKey Wall Reader with Keypad, SM
For setting/unsetting with the Evaluation Module L240/BS. The unit is actuated by inserting
the electronic SafeKey chipkey and/or code. The SafeKey Wall Reader WELT is equipped with
the key reader, keypad and an acknowledgement buzzer. VdS class C.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
stainless steel – WELT/A, ES GHQ3050024R0001 0.45 1
WELT/A, ES

SafeKey Chipkey
It is an electronic carrier medium for setting / unsetting via a SafeKey Wall Reader. A SafeKey
Chipkey can be authorized for any number of different SafeKey systems with different levels 17
of authorization.

SCS Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit

Type code Order code kg pc.
– SCS GHQ3050027R0001 0.02 1
