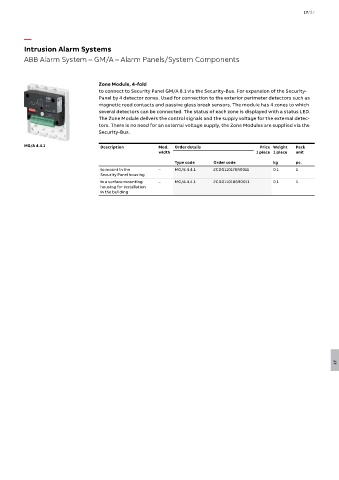

Intrusion Alarm Systems
ABB Alarm System – GM/A – Alarm Panels/System Components

Zone Module, 4-fold
to connect to Security Panel GM/A 8.1 via the Security-Bus. For expansion of the Security-
Panel by 4 detector zones. Used for connection to the exterior perimeter detectors such as
magnetic reed contacts and passive glass break sensors. The module has 4 zones to which
several detectors can be connected. The status of each zone is displayed with a status LED.
The Zone Module delivers the control signals and the supply voltage for the external detec-
tors. There is no need for an external voltage supply, the Zone Modules are supplied via the
Security-Bus.

MG/A 4.4.1 Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
to mount in the – MG/E 4.4.1 2CDG110178R0011 0.1 1
Security Panel housing
in a surface mounting – MG/A 4.4.1 2CDG110186R0011 0.1 1
housing for installation
in the building
