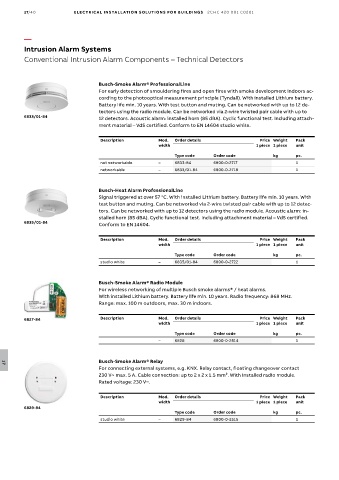

17/40 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Intrusion Alarm Systems
Conventional Intrusion Alarm Components – Technical Detectors

Busch-Smoke Alarm® ProfessionalLine
For early detection of smouldering fires and open fires with smoke development indoors ac-
cording to the photooptical measurement principle (Tyndall). With installed Lithium battery.
Battery life min. 10 years. With test button and muting. Can be networked with up to 12 de-
tectors using the radio module. Can be networked via 2-wire twisted pair cable with up to
6833/01-84 12 detectors. Acoustic alarm: installed horn (85 dBA). Cyclic functional test. Including attach-
ment material – VdS certified. Conform to EN 14604 studio white.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit

Type code Order code kg pc.
not networkable – 6833-84 6800-0-2717 1
networkable – 6833/01-84 6800-0-2718 1

Busch-Heat Alarm ProfessionalLine
Signal triggered at over 57 °C. With installed Lithium battery. Battery life min. 10 years. With
test button and muting. Can be networked via 2-wire twisted pair cable with up to 12 detec-
tors. Can be networked with up to 12 detectors using the radio module. Acoustic alarm: in-
stalled horn (85 dBA). Cyclic functional test. Including attachment material – VdS certified.
6835/01-84
Conform to EN 14604.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
studio white – 6835/01-84 6800-0-2722 1

Busch-Smoke Alarm® Radio Module
For wireless networking of multiple Busch smoke alarms® / heat alarms.
With installed Lithium battery. Battery life min. 10 years. Radio frequency: 868 MHz.
Range: max. 100 m outdoors, max. 30 m indoors.

6827-84 Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
– 6828 6800-0-2514 1

Busch-Smoke Alarm® Relay
For connecting external systems, e.g. KNX. Relay contact, floating changeover contact
17
230 V~ max. 5 A. Cable connection: up to 2 x 2 x 1.5 mm². With installed radio module.
Rated voltage: 230 V~.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
6829-84
Type code Order code kg pc.
studio white – 6829-84 6800-0-2515 1
