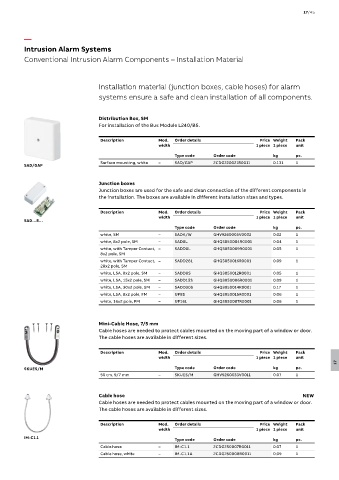

Intrusion Alarm Systems
Conventional Intrusion Alarm Components – Installation Material

Installation material (junction boxes, cable hoses) for alarm
systems ensure a safe and clean installation of all components.

Distribution Box, SM
For installation of the Bus Module L240/BS.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit

Type code Order code kg pc.
Surface mounting, white – SAD/GAP 2CDG220021R0011 0.131 1
SAD/GAP

Junction boxes
Junction boxes are used for the safe and clean connection of the different components in
the installation. The boxes are available in different installation sizes and types.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
SAD…8…
Type code Order code kg pc.
white, SM – SADK/W GHV9260005V0002 0.02 1
white, 8x2 pole, SM – SAD8L GHQ3050004R0001 0.04 1
white, with Tamper Contact, – SADD8L GHQ3050009R0001 0.05 1
8x2 pole, SM
white, with Tamper Contact, – SADD28L GHQ3050016R0001 0.09 1
28x2 pole, SM
white, LSA, 8x2 pole, SM – SADD8S GHQ3050012R0001 0.05 1
white, LSA, 15x2 pole, SM – SADD15S GHQ3050006R0001 0.09 1
white, LSA, 30x2 pole, SM – SADD30S GHQ3050014R0001 0.17 1
white, LSA, 8x2 pole, FM – UP8S GHQ3050015R0001 0.06 1
white, 16x2 pole, FM – UP16L GHQ3050007R0001 0.06 1

Mini-Cable Hose, 7/5 mm
Cable hoses are needed to protect cables mounted on the moving part of a window or door.
The cable hoses are available in different sizes.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
17
SKUES/M Type code Order code kg pc.
50 cm, 9/7 mm – SKUES/M GHV9260033V0011 0.07 1

Cable hose NEW
Cable hoses are needed to protect cables mounted on the moving part of a window or door.
The cable hoses are available in different sizes.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
IM-C1.1 Type code Order code kg pc.
Cable hose – IM-C1.1 2CDG250007R0011 0.07 1
Cable hose, white – IM-C1.1A 2CDG250008R0011 0.09 1
