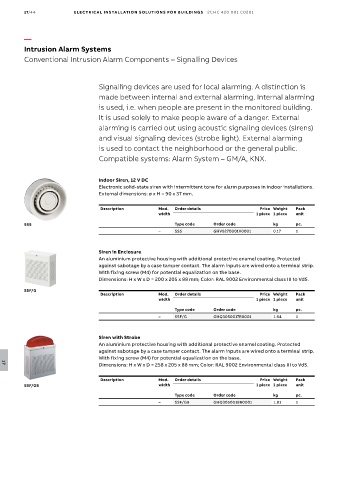

Page 2326 - Din prodcuts 2020

17/44 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Intrusion Alarm Systems
Conventional Intrusion Alarm Components – Signalling Devices

Signalling devices are used for local alarming. A distinction is
made between internal and external alarming. Internal alarming

is used, i.e. when people are present in the monitored building.
It is used solely to make people aware of a danger. External
alarming is carried out using acoustic signaling devices (sirens)
and visual signaling devices (strobe light). External alarming

is used to contact the neighborhood or the general public.
Compatible systems: Alarm System – GM/A, KNX.

Indoor Siren, 12 V DC
Electronic solid-state siren with intermittent tone for alarm purposes in indoor installations.
External dimensions: ø x H = 90 x 37 mm.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit

SSS Type code Order code kg pc.
– SSS GHV9270001V0001 0.17 1

Siren in Enclosure
An aluminium protective housing with additional protective enamel coating. Protected
against sabotage by a case tamper contact. The alarm inputs are wired onto a terminal strip.
With fixing screw (M4) for potential equalization on the base.
Dimensions: H x W x D = 200 x 205 x 88 mm; Color: RAL 9002 Environmental class III to VdS.

SSF/G
Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
– SSF/G GHQ3050017R0001 1.64 1

Siren with Strobe
An aluminium protective housing with additional protective enamel coating. Protected
against sabotage by a case tamper contact. The alarm inputs are wired onto a terminal strip.
With fixing screw (M4) for potential equalization on the base.
Dimensions: H x W x D = 258 x 205 x 88 mm; Color: RAL 9002 Environmental class III to VdS.
17

Description Mod. Order details Price Weight Pack
SSF/GB width 1 piece 1 piece unit
Type code Order code kg pc.
– SSF/GB GHQ3050018R0001 1.81 1
