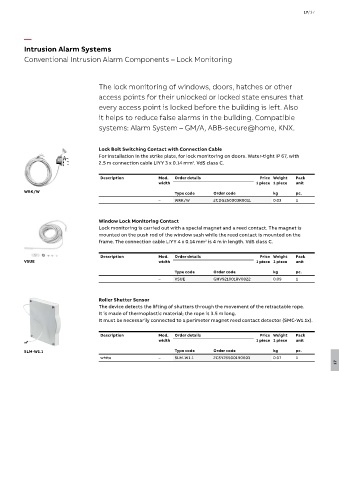

Intrusion Alarm Systems
Conventional Intrusion Alarm Components – Lock Monitoring

The lock monitoring of windows, doors, hatches or other
access points for their unlocked or locked state ensures that

every access point is locked before the building is left. Also
it helps to reduce false alarms in the building. Compatible
systems: Alarm System – GM/A, ABB-secure@home, KNX.

Lock Bolt Switching Contact with Connection Cable
For installation in the strike plate, for lock monitoring on doors. Water-tight IP 67, with
2.5 m connection cable LIYY 3 x 0.14 mm . VdS class C.
2
Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
WRK/W Type code Order code kg pc.
– WRK/W 2CDG250003R0011 0.03 1

Window Lock Monitoring Contact
Lock monitoring is carried out with a special magnet and a reed contact. The magnet is
mounted on the push rod of the window sash while the reed contact is mounted on the
frame. The connection cable LIYY 4 x 0.14 mm is 4 m in length. VdS class C.
2

Description Mod. Order details Price Weight Pack
VSUE width 1 piece 1 piece unit
Type code Order code kg pc.
– VSUE GHV9210018V0022 0.09 1

Roller Shutter Sensor
The device detects the lifting of shutters through the movement of the retractable rope.
It is made of thermoplastic material; the rope is 3.5 m long.
It must be necessarily connected to a perimeter magnet reed contact detector (SMC-W1.1x).

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
SLM-W1.1 Type code Order code kg pc.
white – SLM-W1.1 2CSY255001R0603 0.07 1
