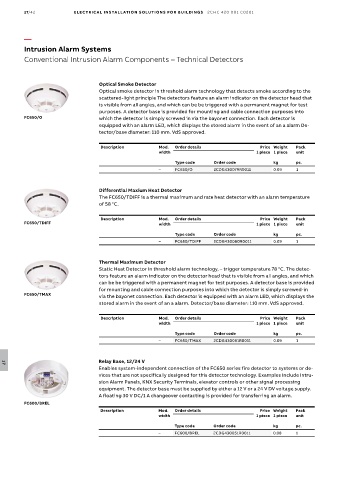

17/42 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Intrusion Alarm Systems
Conventional Intrusion Alarm Components – Technical Detectors

Optical Smoke Detector
Optical smoke detector in threshold alarm technology that detects smoke according to the
scattered-light principle The detectors feature an alarm indicator on the detector head that
is visible from all angles, and which can be be triggered with a permanent magnet for test
purposes. A detector base is provided for mounting and cable connection purposes into
FC650/O which the detector is simply screwed in via the bayonet connection. Each detector is
equipped with an alarm LED, which displays the stored alarm in the event of an a alarm De-
tector/base diameter: 110 mm. VdS approved.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
– FC650/O 2CDG430079R0011 0.09 1

Differential Maxium Heat Detector
The FC650/TDIFF is a thermal maximum and rate heat detector with an alarm temperature
of 58 °C.

Description Mod. Order details Price Weight Pack
FC650/TDIFF width 1 piece 1 piece unit

Type code Order code kg pc.
– FC650/TDIFF 2CDG430080R0011 0.09 1

Thermal Maximum Detector
Static Heat Detector in threshold alarm technology, – trigger temperature 78 °C. The detec-
tors feature an alarm indicator on the detector head that is visible from all angles, and which
can be be triggered with a permanent magnet for test purposes. A detector base is provided
for mounting and cable connection purposes into which the detector is simply screwed-in
FC650/TMAX
via the bayonet connection. Each detector is equipped with an alarm LED, which displays the
stored alarm in the event of an a alarm. Detector/base diameter: 110 mm. VdS approved.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
– FC650/TMAX 2CDG430081R0011 0.09 1

Relay Base, 12/24 V
17
Enables system-independent connection of the FC650 series fire detector to systems or de-
vices that are not specifically designed for this detector technology. Examples include Intru-
sion Alarm Panels, KNX Security Terminals, elevator controls or other signal processing
equipment. The detector base must be supplied by either a 12 V or a 24 V DV voltage supply.
A floating 30 V DC/1 A changeover contacting is provided for transferring an alarm.
FC600/BREL
Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit

Type code Order code kg pc.
– FC600/BREL 2CDG430051R0011 0.08 1
