18/2 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—

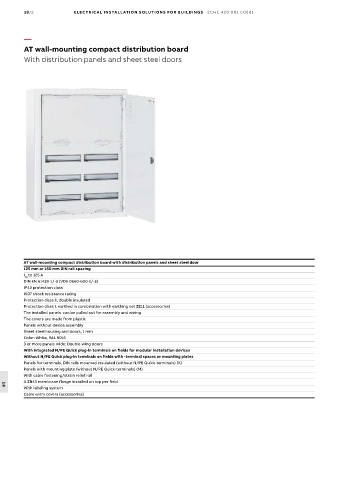

AT wall-mounting compact distribution board
With distribution panels and sheet steel doors

AT wall-mounting compact distribution board with distribution panels and sheet steel door
125 mm or 150 mm DIN rail spacing
I to 125 A
nA
DIN EN 61439-1/-3 (VDE 0660-600-1/-3)
IP43 protection class
IK07 shock resistance rating
Protection class II, double insulated
Protection class I, earthed in combination with earthing set ZE11 (accessories)
The installed panels can be pulled out for assembly and wiring
The covers are made from plastic
Panels without device assembly
Sheet steel housing and doors, 1 mm
Color: White, RAL 9016
3 or more panels wide: Double-wing doors
With integrated N/PE Quick plug-in terminals on fields for modular installation devices
Without N/PE Quick plug-in terminals on fields with -terminal spaces or mounting plates
Panels for terminals, DIN rails mounted insulated (without N/PE Quick-terminals) (K)
Panels with mounting plate (without N/PE Quick-terminals) (M)
With cable fastening/strain relief rail
A ZB43 membrane flange installed on top per field
With labeling system
18
Cable entry covers (accessories)
