18/3

—

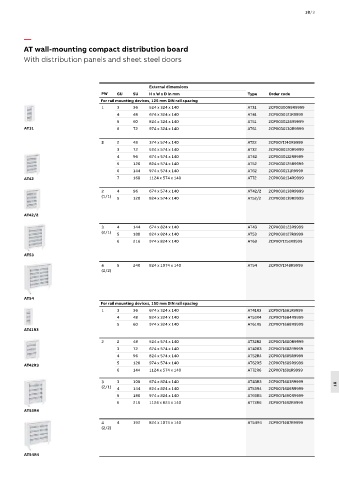

AT wall-mounting compact distribution board
With distribution panels and sheet steel doors

External dimensions
PW GU SU H x W x D in mm Type Order code
For rail mounting devices, 125 mm DIN rail spacing
1 3 36 524 x 324 x 140 AT31 2CPX030099R9999
4 48 674 x 324 x 140 AT41 2CPX030121R9999
5 60 824 x 324 x 140 AT51 2CPX030124R9999
AT31 6 72 974 x 324 x 140 AT61 2CPX030130R9999

2 2 48 374 x 574 x 140 AT22 2CPX071740R9999
3 72 524 x 574 x 140 AT32 2CPX030120R9999
4 96 674 x 574 x 140 AT42 2CPX030122R9999
5 120 824 x 574 x 140 AT52 2CPX030125R9999
6 144 974 x 574 x 140 AT62 2CPX030131R9999
AT42 7 168 1124 x 574 x 140 AT72 2CPX030134R9999
2 4 96 674 x 574 x 140 AT42/2 2CPX030138R9999
(1/1) 5 120 824 x 574 x 140 AT52/2 2CPX030139R9999

AT42/2
3 4 144 674 x 824 x 140 AT43 2CPX030123R9999
(2/1) 5 180 824 x 824 x 140 AT53 2CPX030127R9999
6 216 974 x 824 x 140 AT63 2CPX071751R9999

AT53

4 5 240 824 x 1074 x 140 AT54 2CPX071748R9999
(2/2)

AT54
For rail mounting devices, 150 mm DIN rail spacing
1 3 36 674 x 324 x 140 AT41R3 2CPX071681R9999
4 48 824 x 324 x 140 AT51R4 2CPX071684R9999
5 60 974 x 324 x 140 AT61R5 2CPX071688R9999
AT41R3
2 2 48 524 x 574 x 140 AT32R2 2CPX071680R9999
3 72 674 x 574 x 140 AT42R3 2CPX071682R9999
4 96 824 x 574 x 140 AT52R4 2CPX071685R9999
5 120 974 x 574 x 140 AT62R5 2CPX071689R9999
AT42R3
6 144 1124 x 574 x 140 AT72R6 2CPX071691R9999
3 3 108 674 x 824 x 140 AT43R3 2CPX071683R9999
(2/1) 4 144 824 x 824 x 140 AT53R4 2CPX071686R9999 18
5 180 974 x 824 x 140 AT63R5 2CPX071690R9999
6 216 1124 x 824 x 140 AT73R6 2CPX071692R9999
AT53R4

4 4 192 824 x 1074 x 140 AT54R4 2CPX071687R9999
(2/2)

AT54R4
