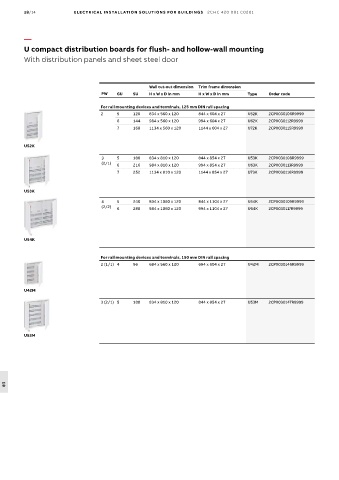

Page 2342 - Din prodcuts 2020

18/14 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
U compact distribution boards for flush- and hollow-wall mounting
With distribution panels and sheet steel door

Wall cut-out dimension Trim frame dimension
PW GU SU H x W x D in mm H x W x D in mm Type Order code

For rail mounting devices and terminals, 125 mm DIN rail spacing
2 5 120 834 x 560 x 120 844 x 604 x 27 U52K 2CPX030106R9999
6 144 984 x 560 x 120 994 x 604 x 27 U62K 2CPX030112R9999
7 168 1134 x 560 x 120 1144 x 604 x 27 U72K 2CPX030115R9999

U52K

3 5 180 834 x 810 x 120 844 x 854 x 27 U53K 2CPX030108R9999
(2/1) 6 216 984 x 810 x 120 994 x 854 x 27 U63K 2CPX030113R9999
7 252 1134 x 810 x 120 1144 x 854 x 27 U73K 2CPX030116R9999

U53K

4 5 240 834 x 1060 x 120 844 x 1104 x 27 U54K 2CPX030109R9999
(2/2) 6 288 984 x 1060 x 120 994 x 1104 x 27 U64K 2CPX030117R9999

U54K

For rail mounting devices and terminals, 150 mm DIN rail spacing
2 (1/1) 4 96 684 x 560 x 120 694 x 604 x 27 U42M 2CPX030146R9999

U42M

3 (2/1) 5 180 834 x 810 x 120 844 x 854 x 27 U53M 2CPX030147R9999

U53M

18
